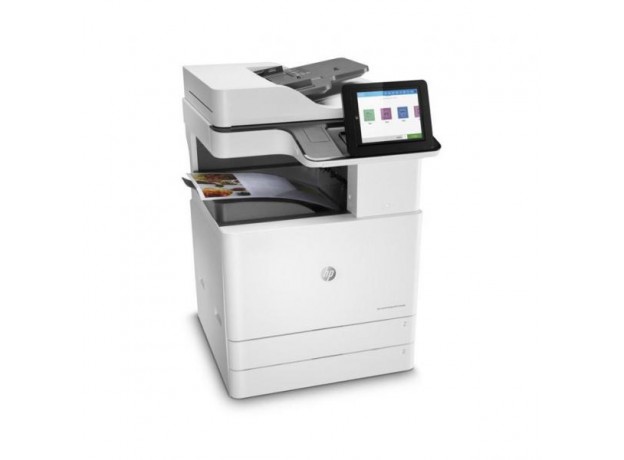

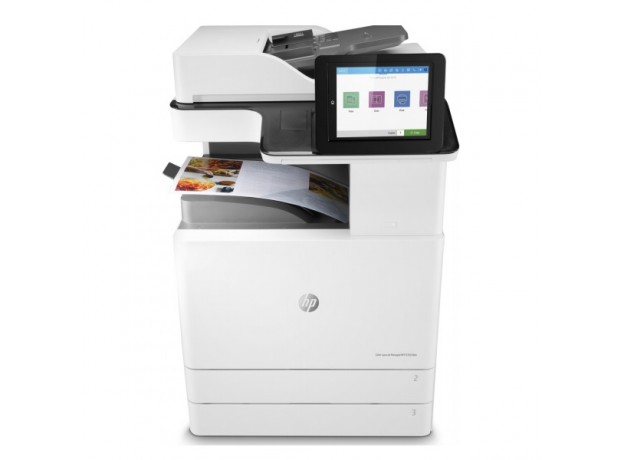

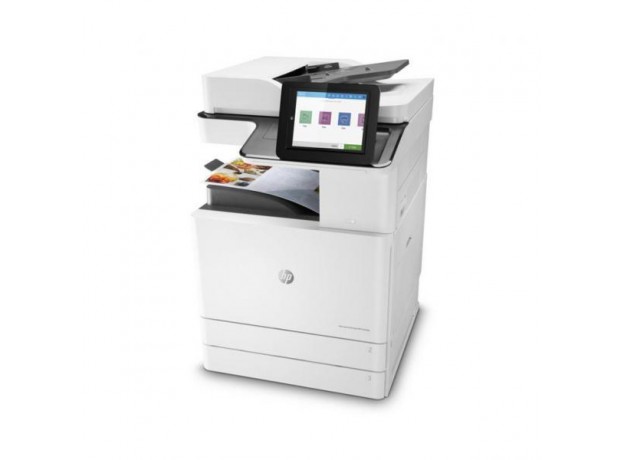

Máy in laser màu HP Color LaserJet Managed MFP E78228DN (8GS37A)

Sản phẩm bao gồm

• Máy in laser màu HP Color LaserJet Managed MFP E78228DN (8GS37A)

Đặc tính kỹ thuật HP Color LaserJet Managed MFP E78228DN (8GS37A)

Model

HP Color LaserJet Managed MFP E78228dn

Product number

8GS37A

Functions

Print, copy, scan, fax (optional)

Control panel

22.8 cm (9.0-in) functional touchscreen with 20.3 cm (8.0 in) Colour Graphics Display (CGD) with touchscreen; Tilting (adjustable angle) display; Illuminated Home button (for quick return to the Home menu); USB High-speed 2.0 port; Hardware Integration Pocket

Print

Print technology

Laser

Print speed

Black (A4, normal): Up to 28 ppm; Colour (A4, normal): Up to 28 ppm;

Black (A4, duplex): Up to 20 ipm; Colour (A4, duplex): Up to 21 ipm;

First page out

Black (A4, ready): As fast as 8.9 sec; Colour (A4, ready): As fast as 11.0 sec;

Black (A4, sleep): As fast as 25 sec; Colour (A4, sleep): As fast as 25 sec;

Print resolution

Black (best): Up to 1200 x 1200 dpi reduced speed; Colour (best): Up to 1200 x 1200 dpi reduced speed;

Technology: Normal (600 x 600 4-bit); Best (1200 x 1200 1-bit);

Monthly duty cycle

Up to 80,000 pages A4; Recommended monthly page volume: Up to 20,000

Printer smart software features

Quality colour printing for a great value is a smart choice for any business. Produce premium, professional-quality colour documents at a competitive low cost with an HP Color LaserJet MFP built to make your work—and your business—look its best. Annoying interruptions and complex maintenance can slow down printing, and ultimately, the pace of business. Avoid pauses in productivity with an HP LaserJet MFP designed for maximum uptime, so you can count on reliable, results day in and day out. Only HP Enterprise printers repair themselves from attacks in real time, delivering built-in security to help keep your network safe. Automatically monitor threats, detect intrusions, and validate operating software with security offered only by HP. Accelerate workflow, improve accuracy, and easily connect people throughout your organization.

Standard print languages

HP PCL 6, HP Postscript level 3 emulation, PDF (v 1.7), AirPrint™ compatible

Fonts and typefaces

84 scalable TrueType fonts

Print area

Print margins Top: 4.23 mm, Bottom: 4.23 mm, Left: 4.23 mm, Right: 4.23 mm; Maximum print area : 288.5 x 423.6 mm

Duplex printing

Automatic (standard)

Copy

Copy speed

Black (A4): Up to 28 cpm; Colour (A4): Up to 28 cpm

Copier specifications

Two-sided copying; Scalability; Image adjustments (darkness, contrast, background cleanup, sharpness); Optimised text/picture (text, mixed, printed picture, photograph); N-Up; N or Z-ordering; Content orientation; Collation; ID Scan; Job build; Job Storage; Watermark; Stamps; Book mode scans; Erase edges; Automatically detect colour/monochrome; Image Preview; Maximum number of copies: Up to 9999 copies; Reduce/Enlarge: 25 to 400%

Scan

Scan speed

Normal (A4): Up to 46 ipm ;Duplex (A4): Up to 19 ipm

Scan file format

Digital Send: PDF, Hi-Compression PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)

Scanner specifications

Scanner type Flatbed, ADF; Scan technology: Platen Scanner (CCD); Scan input modes: Front panel applications: Copy; E-mail; Fax; Save to Network Folder; Save to USB; Save to Device Memory; Open Extensibility Platform (OXP) applications; Twain version: Version 2.1; Duplex ADF scanning: Yes; Scan size maximum (flatbed, ADF): 297 x 432 mm; Optical scan resolution: UP to 600 x 600 dpi

Scanner advanced features

Scan-to-E-mail; Scan-to-network folder (stand alone solution); Scan to Cloud; Scan to USB; Scan-to-SharePoint

Scannable area

Maximum media size (flatbed): 297 x 432 mm ;Minimum media size (ADF): 148 x 210 mm Maximum media size (ADF): 297 x 432 mm

Bit depth/ Grey scale levels

24-bit / 256

Digital sending

Standard: Scan to E-mail; Save-to-Network Folder; Save-to-USB drive; Send to Sharepoint; Send to FTP; Send to sFTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Colour Sense; Compact PDF; Auto Straighten ; Optional: Scan to Job storage; Send to LAN Fax; Send to Internet Fax

Fax

Fax

Yes, Optional (33.6K, HP MFP Analog 700 Fax Accessory)

Fax specifications

Fax memory: Up to 500 pages; Fax resolution: Standard: 203 x 98 dpi; Fine: Up to 203 x 196 dpi; Superfine: Up to 203 x 392 or 300 x 300 dpi; Quick dialing: Up to

1000 numbers (each with 210 destinations)

Processor speed

1.2 GHz

Connectivity

Standard

2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet 10/100/1000T network; 1 Hardware Integration Pocket

Optional

HP Jetdirect 2900nw Print Server J8031A; HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A

Wireless

No wireless capabilities standard. There are optional accessories (common to all current Jedi products) that support wireless. These are listed in the accessories section, above.

Mobile printing capability

Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; PrinterOn Print

Supported network protocols

IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; Other: NetWare NDS, Bindery, NDPS, ePrint; Google Cloud Print 2.0

Network capabilities

Standard (built-in Gigabit 10/100/1000T Ethernet)

Hard disk

Standard two 16 GB encrypted eMMCs: one is located on formatter board for stored jobs and solutions, another one is located on ECB for copy/scan function; Optional

HP High-Performance Secure Hard Disk; AES 256 hardware encryption or greater; Secure erase capabilities (Secure File Erase-Temporary Job Files, Secure Erase-Job

Data, Secure ATA Erase-Disk); Optional 500 GB Hard Disk (located on ECB for copy/scan functions). ECB: Engine Controller Board

Memory

Standard: 4.25 GB (Formatter 1.25 GB + ECB 3 GB) ;Maximum: 6.25 GB (standard memory + optional 2 GB)

Media handling

Number of paper trays

Standard: 3 ; Maximum: 5

Media types

Plain, HP EcoEFICIENT, HP Matte 90g, Light 60-74g, Bond, Recycled, HP Matte 105g, HP Matte 120g, Mid-Weight 96-110g, Heavy 111-130g, HP Matte 150g, Extra

Heavy 131-175g, HP Matte 200g, Cardstock 176-220g, Labels, Envelope, Preprinted, Prepunched, Coloured

Media size

Custom (metric): Tray 1: 98 x 148 mm to 297 x 432 mm; Tray 2: 139.7 x 210 mm to 297 x 364 mm; Tray 3: 139.7 x 210 mm to 297 x 432 mm

Supported (metric): Tray 1: A3, A4, A4R, A5, A5R, A6, Ra4, B4 (JIS), B5 (JIS), B6 (JIS), Oficio, 8K, 16k, Postcard, Dpostcard (JIS), Envelope B5, Envelop C5, Envelope C6,

Envelope DL; Tray 2: A4, A4R, A5, Ra4, B4 (JIS), B5 (JIS), Oficio, 16k; Tray 3: A3, A4, A4R, A5, Ra3, Ra4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k

ADF: Oficio, Executive, Statement, Ledger, A3, A4, A4R, A5, B4, B5, 16K, 148 x 148 mm to 297 x 432 mm
