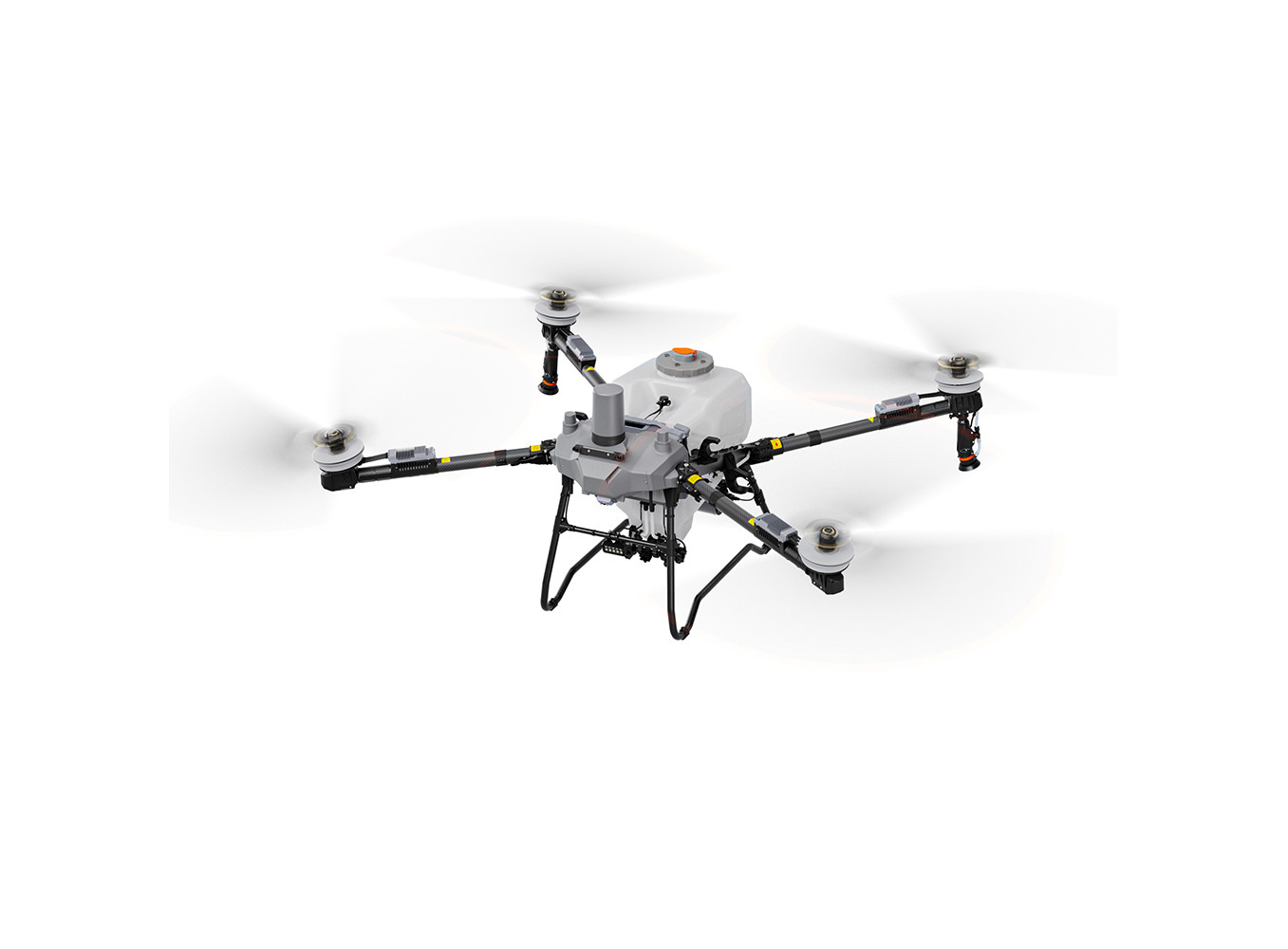

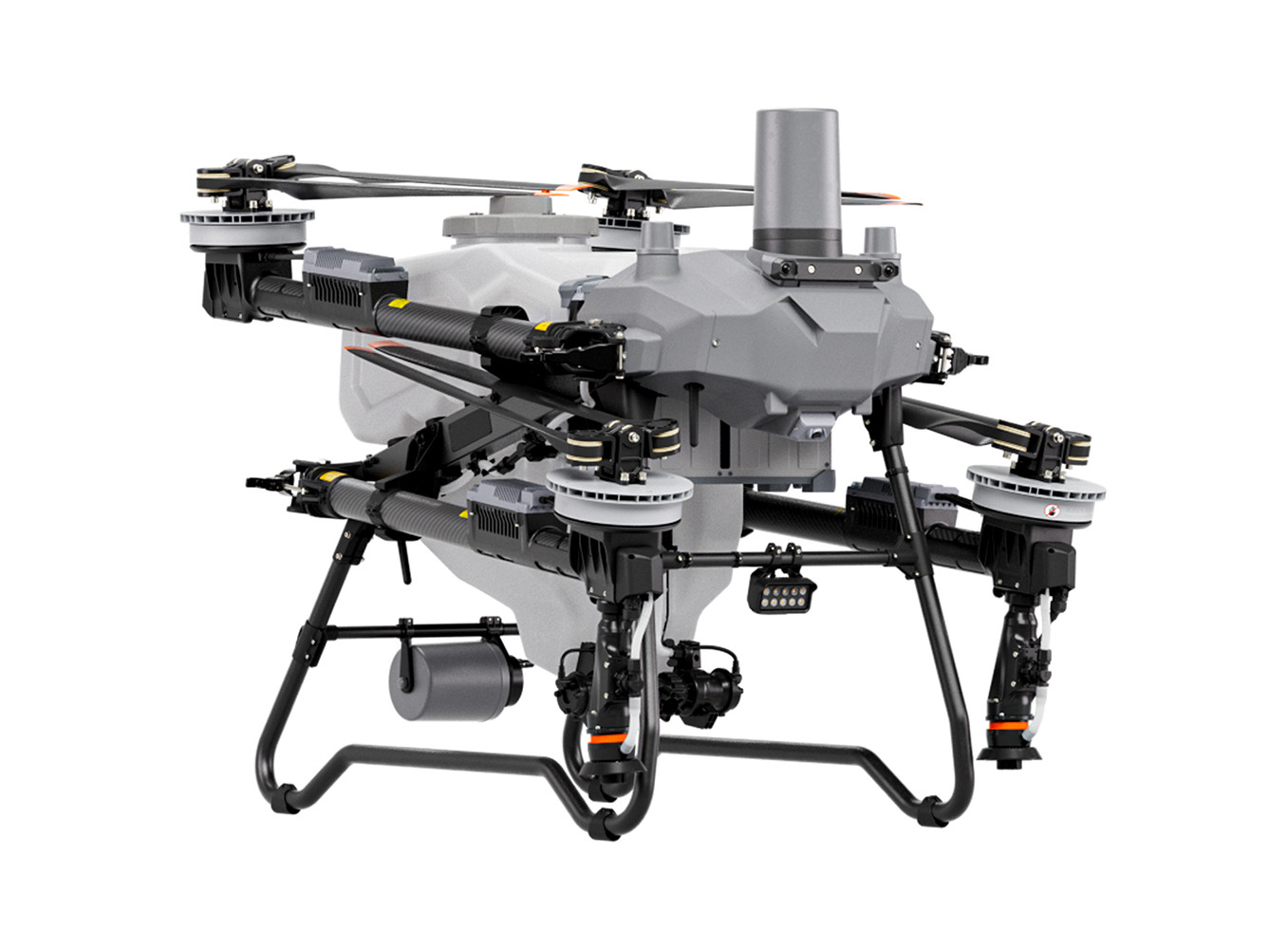

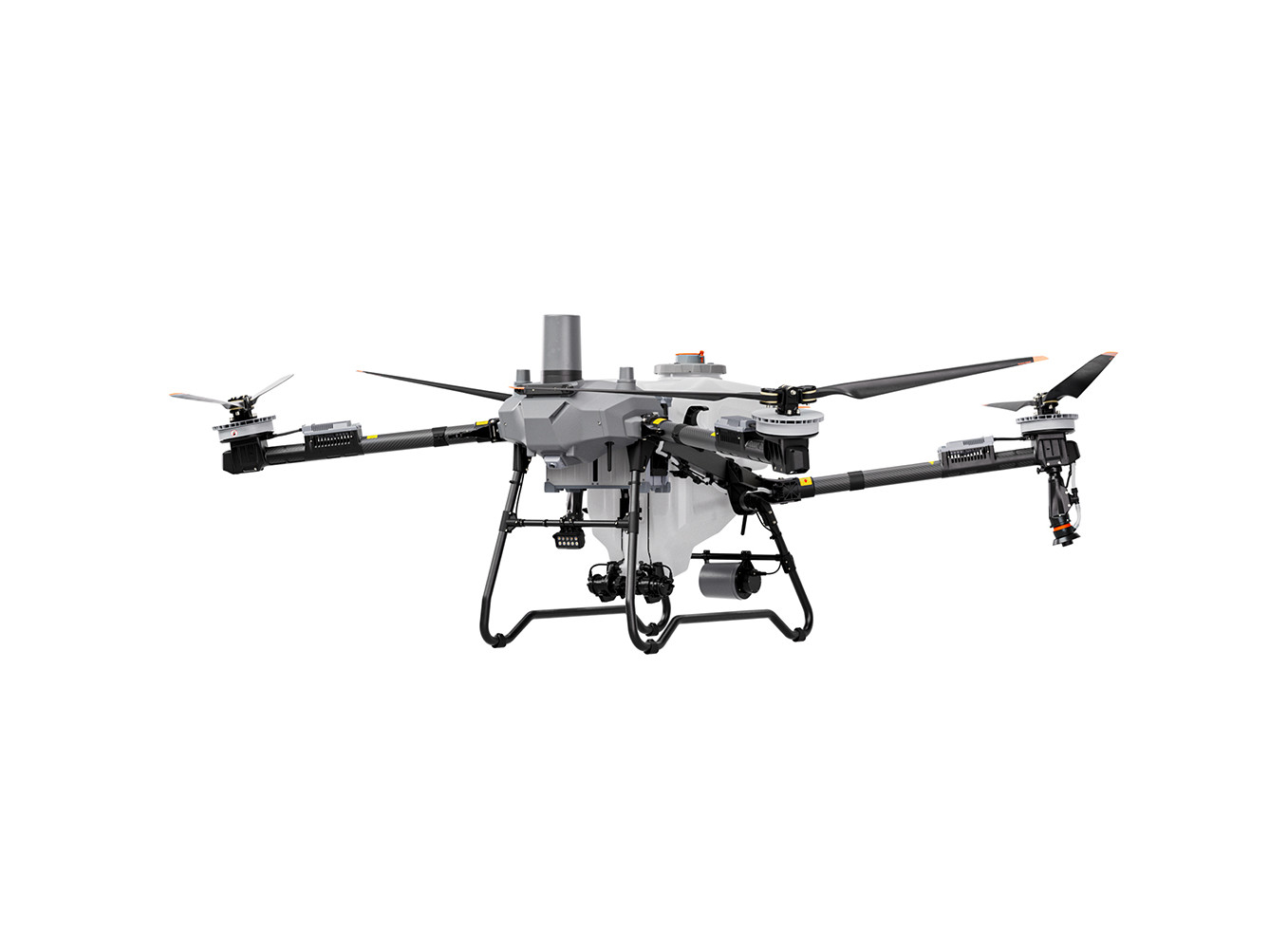

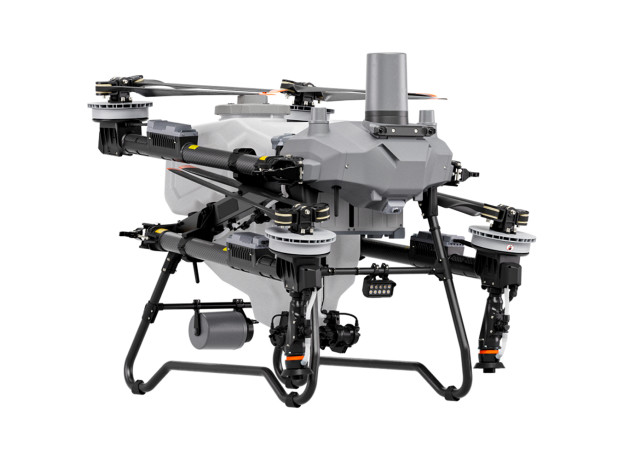

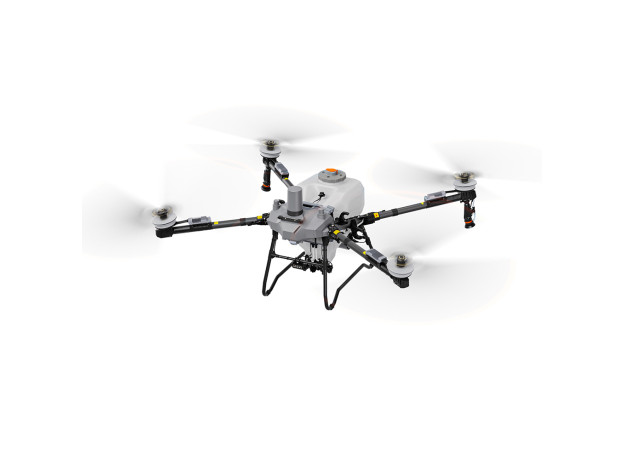

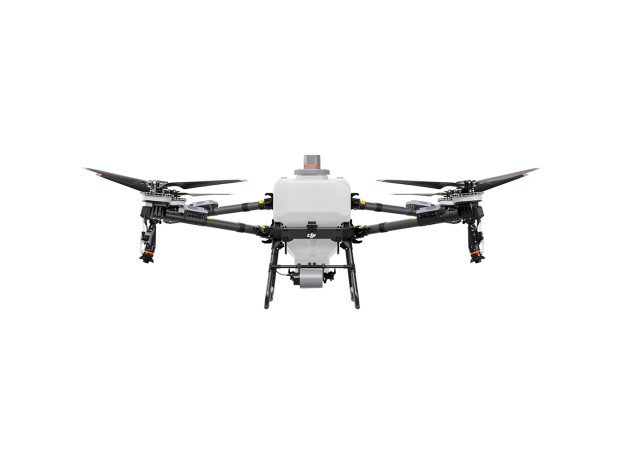

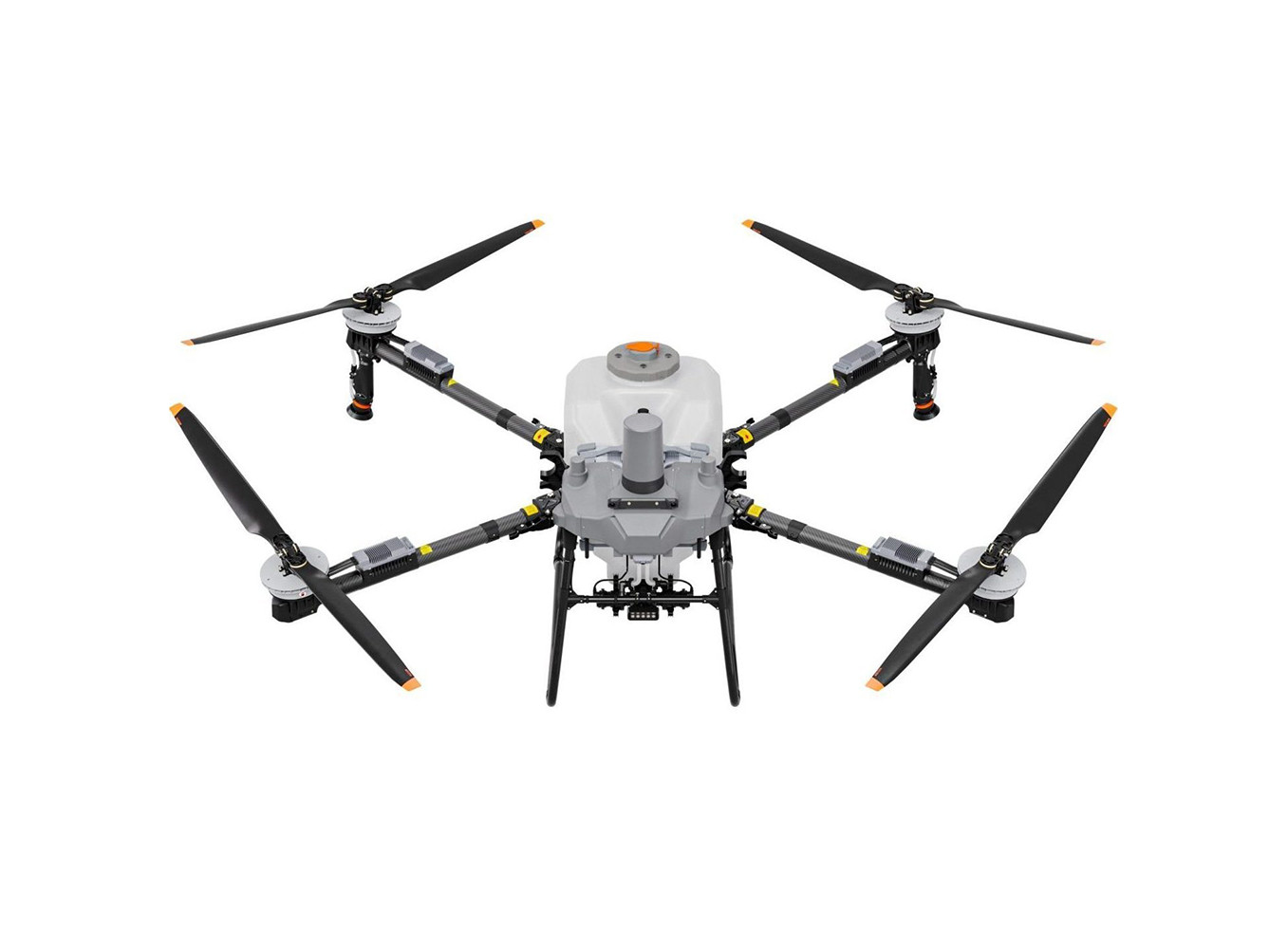

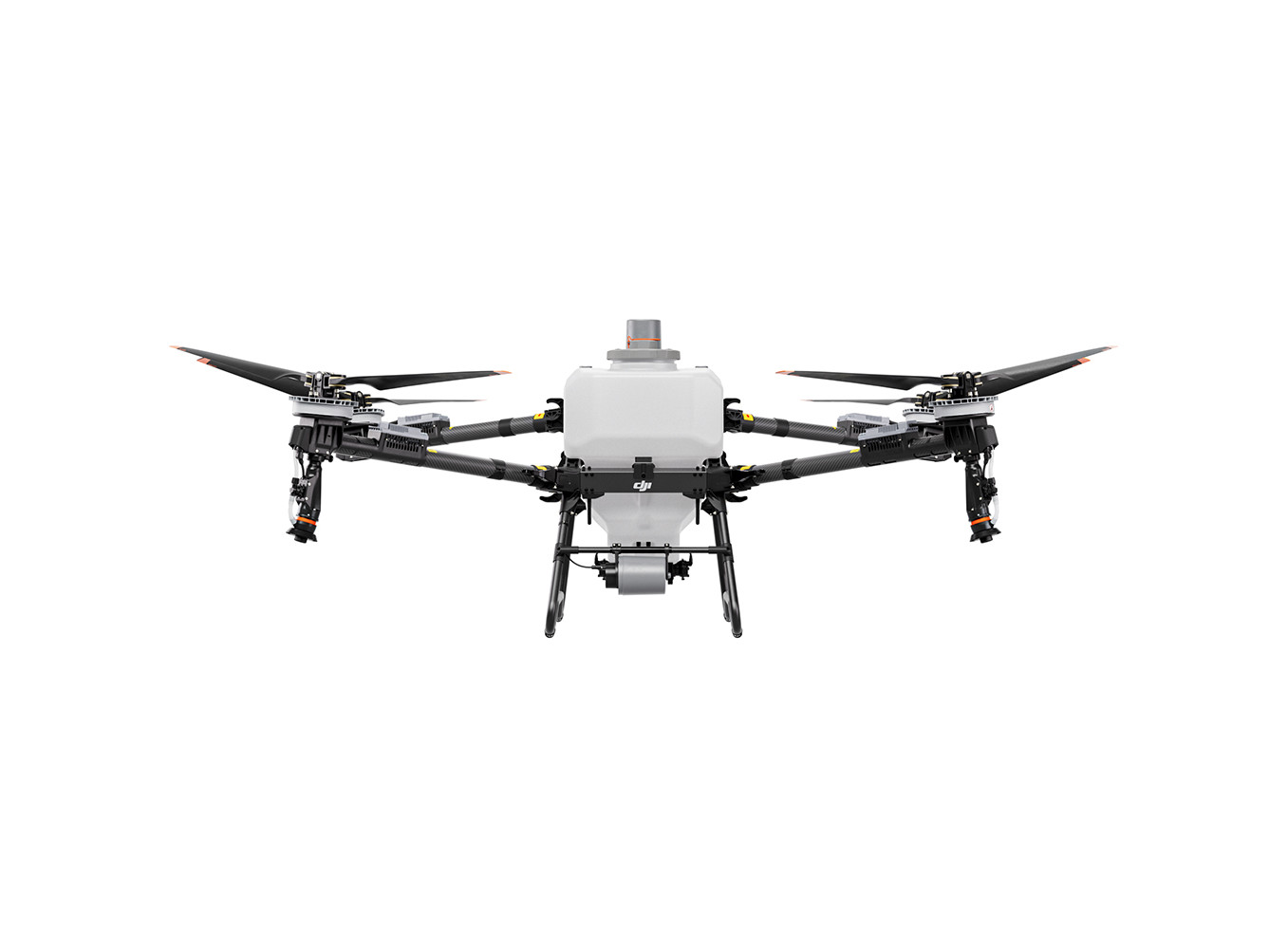

DJI Agras T70P (Chính hãng)

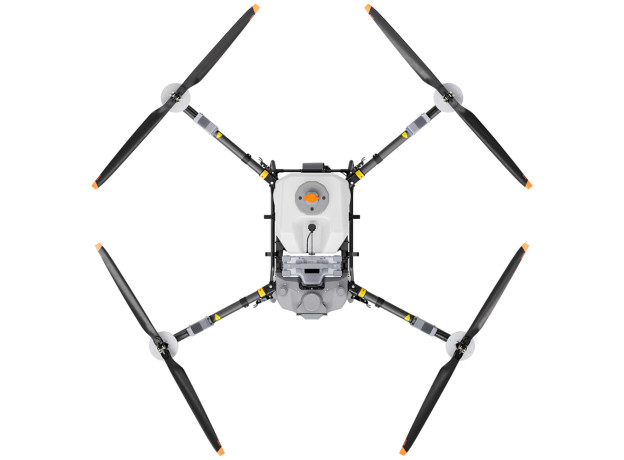

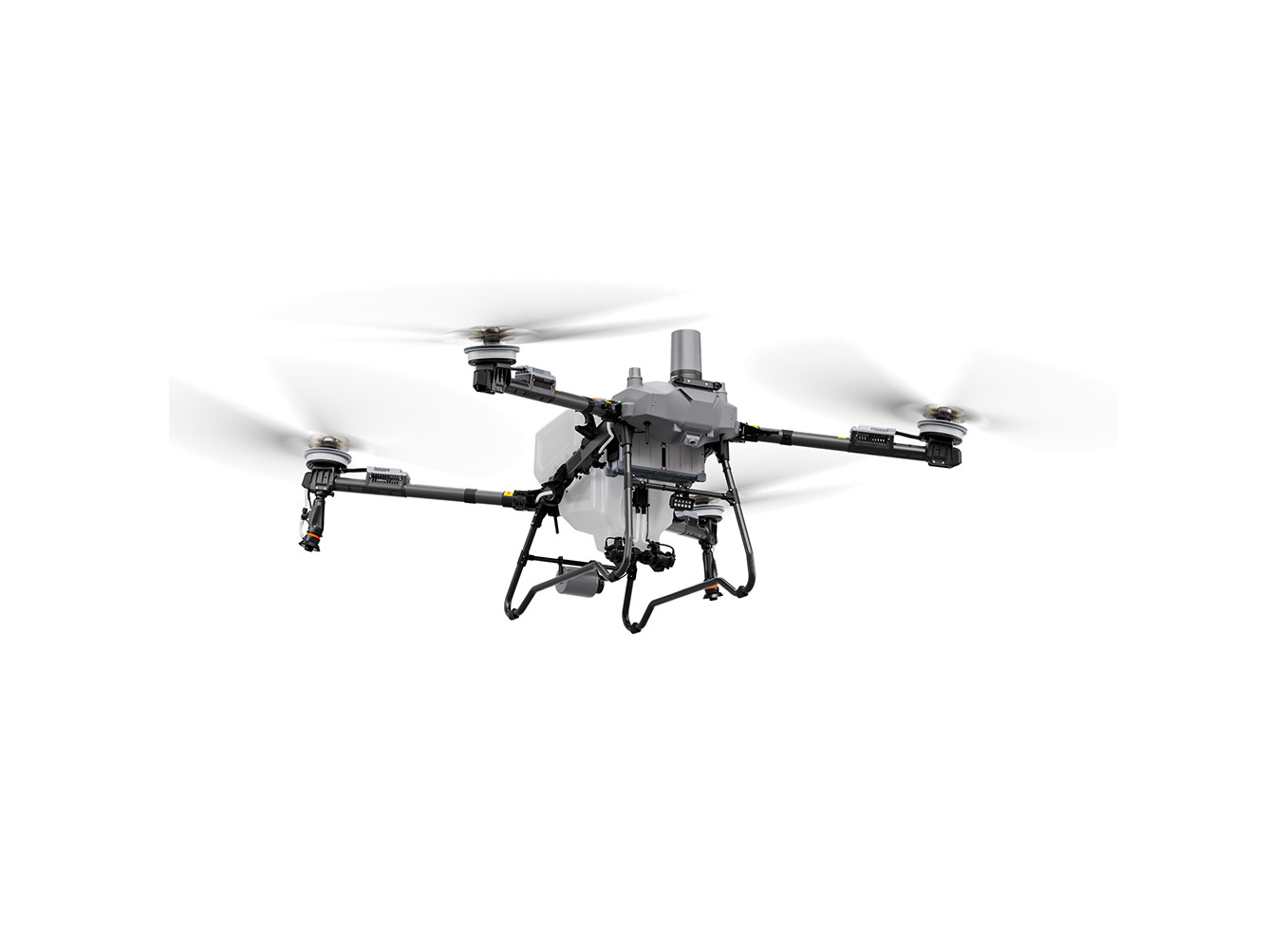

Aircraft

• Weight

• Equipped with DB1580 Intelligent Flight Battery: 52 kg (including battery)
  Equipped with DB2160 Intelligent Flight Battery: 56 kg (including battery)

• Max Takeoff Weight^[1]

• Equipped with DB1580 Intelligent Flight Battery:
  Max takeoff weight for spraying (standard with 2 nozzles): 102 kg
  Max takeoff weight for spraying (optional with 4 nozzles): 105 kg
  Max takeoff weight for spreading: 126 kg
  Max takeoff weight for lifting: 115 kg
  Equipped with DB2160 Intelligent Flight Battery:
  Max takeoff weight for spraying (standard with 2 nozzles): 126 kg
  Max takeoff weight for spraying (optional 4 nozzles): 130 kg
  Max takeoff weight for spreading: 130 kg
  Max takeoff weight for lifting: 118.5 kg

• Max Diagonal Wheelbase

• 2440 mm

• Dimensions

• 3200 mm × 3520 mm × 960 mm (arms and propellers unfolded)
  1820 mm × 2100 mm × 960 mm (arms unfolded and propellers folded)

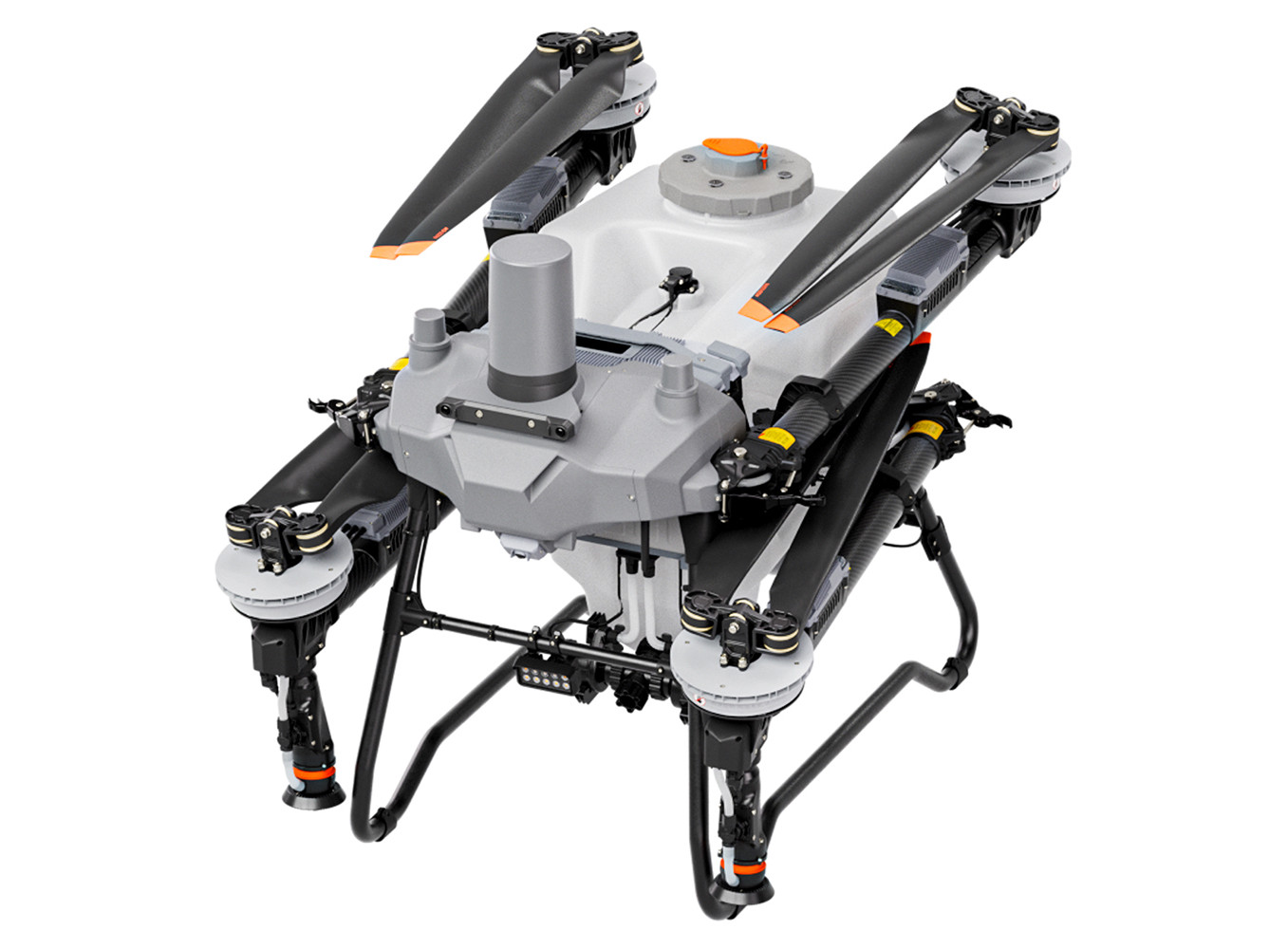

  1160 mm × 900 mm × 960 mm (arms and propellers folded)

• Hovering Accuracy Range (with strong GNSS signal)

• RTK Enabled:
  ±10 cm (horizontal), ±10 cm (vertical)
  RTK not enabled:
  Horizontal ± 0.6 m, vertical ± 0.3 m

• Max Configurable Flight Radius

• 2 km

• Operating Temperature

• 0 °C to 40 °C

• Max Wind Resistance

• <6 m/s

Propulsion System - Motors

• Stator Size

• 155 × 22 mm

• KV

• 65 rpm/V

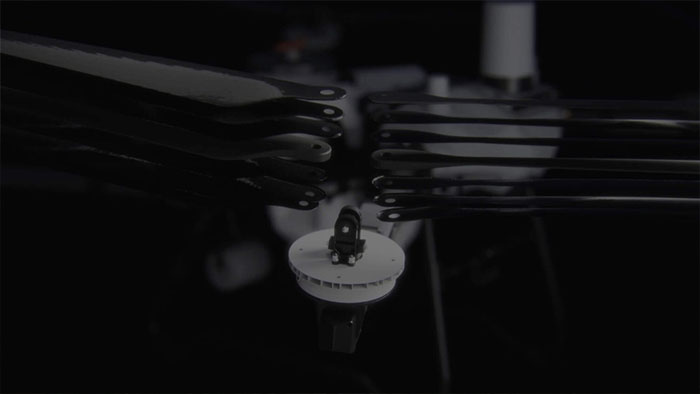

Propulsion System - Propellers

• Material

• Carbon Fiber Composite

• Dimensions

• 62 inches

• Quantity

• 4

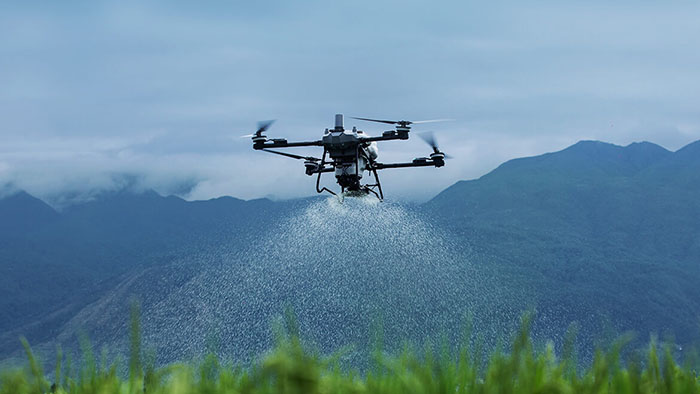

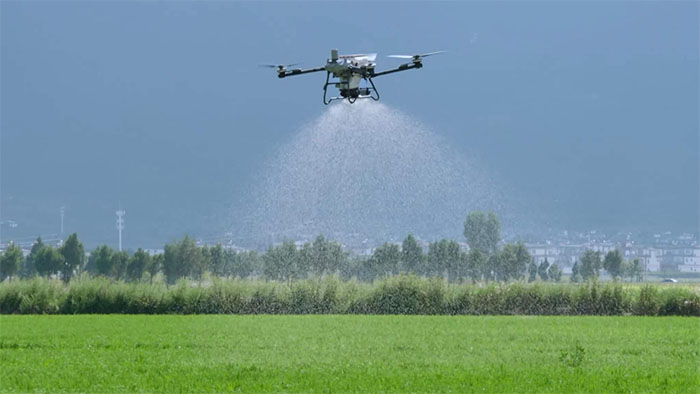

Spraying System - Spray Tank

• Material

• HDPE

• Volume

• 70 L

• Operating Payload

• 70 kg

Spraying System - Sprinklers

• Model

• LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle)

• Quantity

• 2 (Standard) / 4 (Optional)

• Nozzle Distance

• 1874 mm (Rear Nozzles)

• Droplet Size

• 50 - 500 μm

• Effective Spray Width^[2]

• 4 - 11 m

Spraying system - Delivery Pumps

• Type

• Impeller Pump (Magnetic Drive)

• Quantity

• 2

• Max Flow Rate

• 30 L/min (Standard 2 Sprays）
  40 L/min (Optional 4 Sprays)

Spreading System 4.0

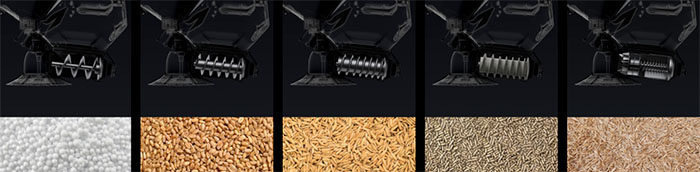

• Compatible Material Diameter

• Standard configuration:
  Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.)
  Medium auger: 4 mm - 6 mm granules (rice)
  Optional:
  Large auger: 4 mm - 10 mm granules (rice, fertilizer)
  Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides)

• Spreading Tank Volume

• 100 L

• Spreader structure type

• Centrifugal Disc

• Discharge Structure Type

• Feeder Feeding

• Max Discharge Rate

• 400 kg/min (compound fertilizer)

• Max load inside the spreading operation box

• 70 kg

• Effective spreading width^[3]

• 3 - 10 m

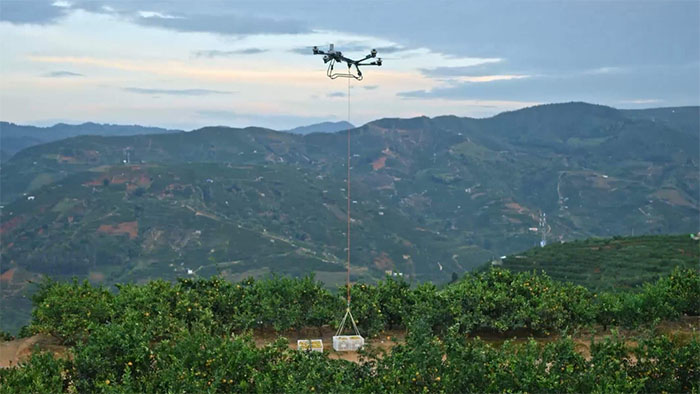

Lifting system

• Load capacity^[4]

• 65 kg

• Lifting Cable Length

• 10 m (standard configuration)

• Recommended cable length

• 10 - 15 m

• Operating Temperature

• 0 °C to 40 °C

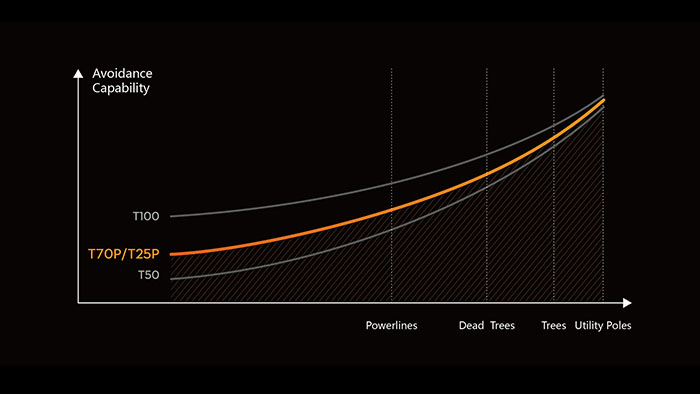

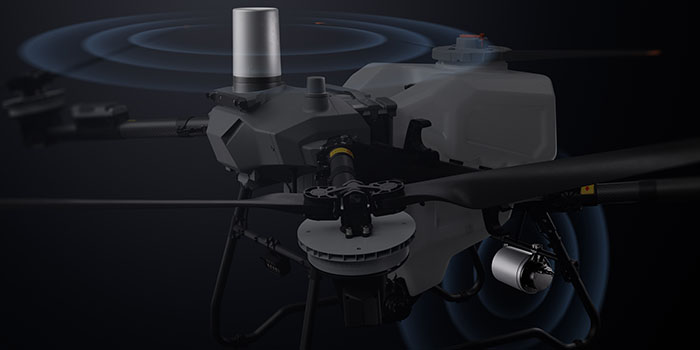

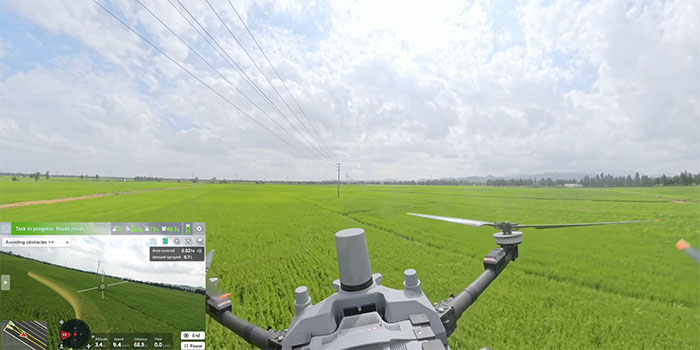

Safety System 3.0

• Millimeter wave radar EIRP

• < 20 dBm (NCC / MIC / KC / CE / FCC)

• Operating Temperature

• 0 °C to 40 °C

• Operating Environment

• Adequate light and discernible surroundings

• Field of View (FOV)

• Front millimeter wave radar: Horizontal 360°, Vertical ± 45°, Up ± 45° (cone)
  Rear millimeter wave radar: Vertical 360°, Horizontal ± 45°

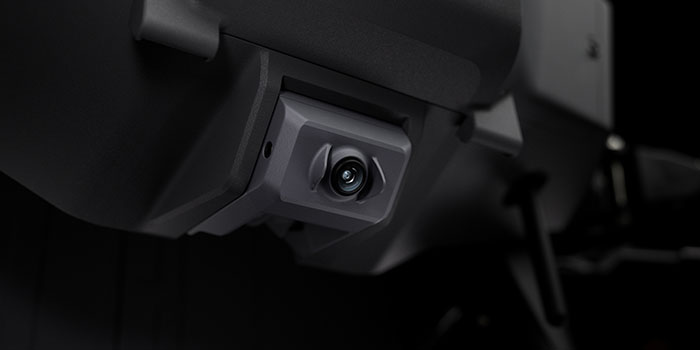

  Tri-eye Visionary Intelligence: Horizontal 90°, Vertical 180°

• Range^[4]

• ≤ 60 m

• Effective safe obstacle avoidance speed^[5]

• ≤ 13.8 m/s

• Effective Obstacle Avoidance Height

• ≥ 1.5 m

• Safe Distance

• 2.5m (Distance between the drone and obstacle after braking and stable hovering)

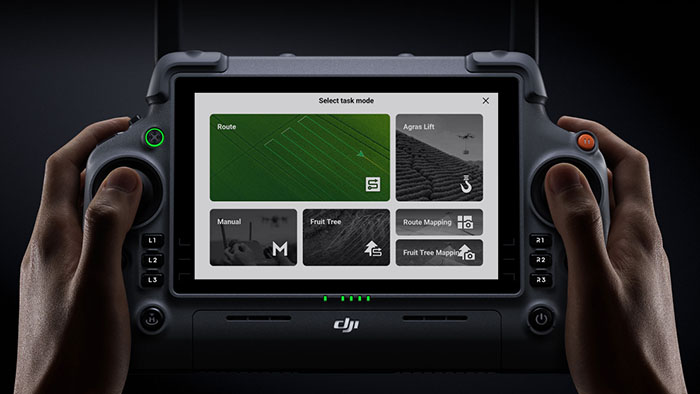

Remote Controller

• Model

• TKPL 2

• Screen

• 7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m²

• Storage Temperature Range

• Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Three months to one year: -30° to 30° C (-22° to 86° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

• 3.8 hours

• External Battery Runtime

• 3.2 hours

• Charging Type

• Use a USB-C fast charger with a maximum power of 65 W (maximum voltage 20 V), and it is recommended to use the DJI Portable Charger.

• Charging Time

• 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB1580 Intelligent Flight Battery

• Weight^[1]

• 11.7 ± 0.3 kg

• Capacity

• 30000 mAh

• Nominal Voltage

• 52 V

DB2160 Intelligent Flight Battery

• Weight^[1]

• 14.7 ± 0.3 kg

• Capacity

• 41000 mAh

• Nominal Voltage

• 52 V

D14000iE Multifunctional Inverter Generator

• Output Channels

• 1. DC recharge output 42 - 61.6 V/9650W
  2. Air-cooled radiator charge 12 V/6A
  3. AC output 220 V/1500W

• Recharge Time^[6]

• 7 - 8 minutes (DB1580 Intelligent Flight Battery, 30% - 95% power)
  8 - 9 minutes ( DB2160 Intelligent Flight Battery, 30% - 95% power)

• Fuel tank capacity

• 30 L

• Starting Method

• Starting the Generator via the One-Button Start Switch

• Operating Temperature

• 0 °C to 40 °C

• Compatible Battery

• DB1580 / DB2160 Intelligent Flight Battery

• Dimensions

• 757 mm × 704 mm × 677 mm

• Weight^[1]

• 87 ± 0.5 kg

• Fuel type

• Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

• Reference fuel consumption

• 500 mL/kWh

• Engine Oil Model

• SJ 10W-40

C12000 Smart Charger

• Charger Model

• CSX901-12000

• Dimensions

• 456 mm × 291 mm × 107 mm

• Weight^[1]

• 13.13 kg

• Input

• Three-phase AC Input: 175 - 520 V
  Single-phase AC Input: 200 - 264 V

• Output

• 62 V

• Rated output current

• 194 A

• Rated Power

• 12000 W (three-phase 380 V input)
  3000 W (single-phase 220 V input)

• Charging Time^[6]

• 7 - 8 mins (DB1580 Intelligent Flight Battery, 30% - 95% charge)
  8 - 9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge)

• Protection functions

• Over-voltage, over-charge, under-voltage and over-temperature protection.

• Operating Temperature

• 0° to 40° C

• Output Channels

• 1

• Compatible with Intelligent Flight Battery

• DB1580 / DB2160 Intelligent Flight Battery

Relay

• Dimensions

• 112 mm × 112 mm × 51 mm (without antenna)
  120 mm × 112 mm × 101 mm (with antenna)

• Weight^[1]

• 630 g

• Input

• 2.7V - 24V

• Power consumption

• 10.48 W (FCC), 8.8 W (SRRC)

• Battery capacity

• 6500 mAh

• Operating Time

• 5 hours

• Operating Frequency

• 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz

• Effective signal range

• 5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
  (In an interference-free, unobstructed environment, flight altitude 2.5 m)

• Charging Time

• 2.5 hours (30W recharge)

• Ingress Protection Rating

• IP55

D-RTK 3 AG

• Supports satellite systems

• GPS: L1/L2/L5
  BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
  Galileo: E1/E5a/E5b/E6
  GLONASS: G1/G2
  QZSS: L1CA/L2C/L5
  L-BAND

• Dimensions

• 345 mm × 244 mm × 300 mm

• Weight^[1]

• 3.77 kg (including packaging)

• Power consumption

• 7 W

• Battery capacity

• 6500 mAh

• Operating Time

• 7 hours

• Operating Frequency

• Broadcast mode:
  O4: 2.4G/5.8G

• Effective signal range

• FCC: 15 km
  SRRC: 12 km
  CE/JP: 8 km

• Charging Time

• 2.5 hours (30W recharge)

• Ingress Protection Rating

• IP67

• Positioning Accuracy^[7]

• PPP Satellite Service Accuracy:
  Convergence Time: 20 min
  Horizontal: 30 cm (RMS)
  Elevation: 40 cm (RMS)
  Network RTK Calibration:
  Horizontal: 0.8 cm + 1 ppm (RMS)
  Vertical: 1.5 cm + 1 ppm (RMS)
  1 ppm: For every 1 km increase between the aircraft and the base station, the accuracy worsens by 1 mm. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.

Footnotes

• [1] Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.
  [2] The effective spray width of the spraying system depends on the actual working scene.
  [3] Working height is 3 m, disc rotation speed is 1100 rpm, uniformity requirement (CV<30%) measured broadcast width is 10 m. The faster the disc rotation speed, the higher the flight altitude, the larger the broadcast width.
  [4] Includes the weight of ropes and hooks. Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current state of the aircraft, environmental conditions, and operational tasks. The maximum weight of the loaded material should not exceed the recommended value, as it may affect flight safety.
  [5] The effective working range of sensing distance, obstacle avoidance, and bypassing capabilities may vary due to different environmental lighting, rain, fog, and the material, location, and shape of the subject object. The downward sensing is used to assist in terrain-following altitude flight, while sensing in other directions is used for obstacle avoidance. Except for scenes without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on power poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer's responsibility.
  Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customer's responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customer's responsibility.
  [6] Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors.
  [7] Positioning accuracy and reliability are affected by various factors, including equipment tilt, signal obstruction, multipath, number of satellites, geometric distribution, and atmospheric conditions. It is recommended to set up the equipment in open scenes, away from electromagnetic interference and multipath environments.

• The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.



D14000iE Multifunctional Inverter Generator

• Engine Oil Capacity

• 1.3 L
