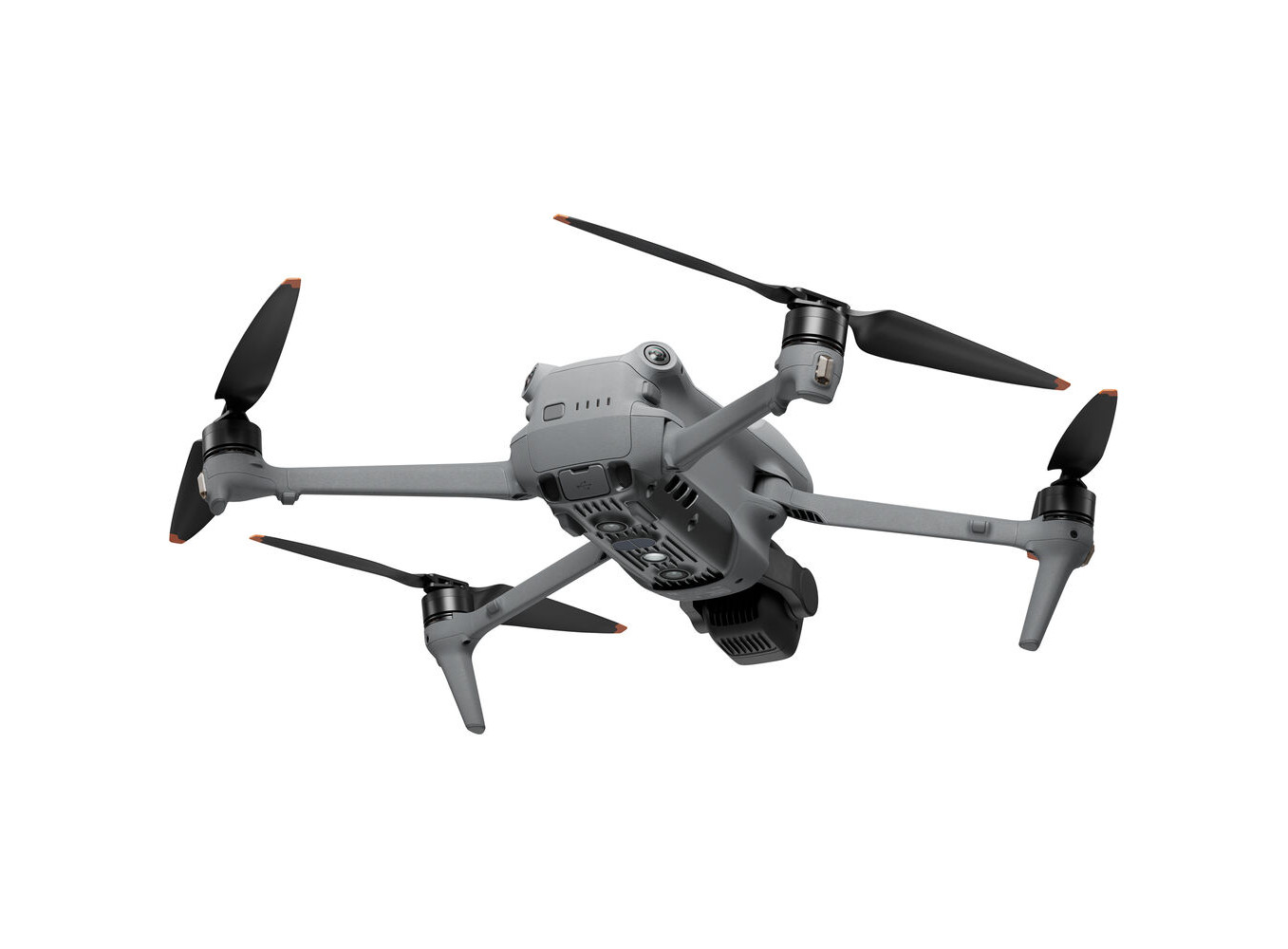

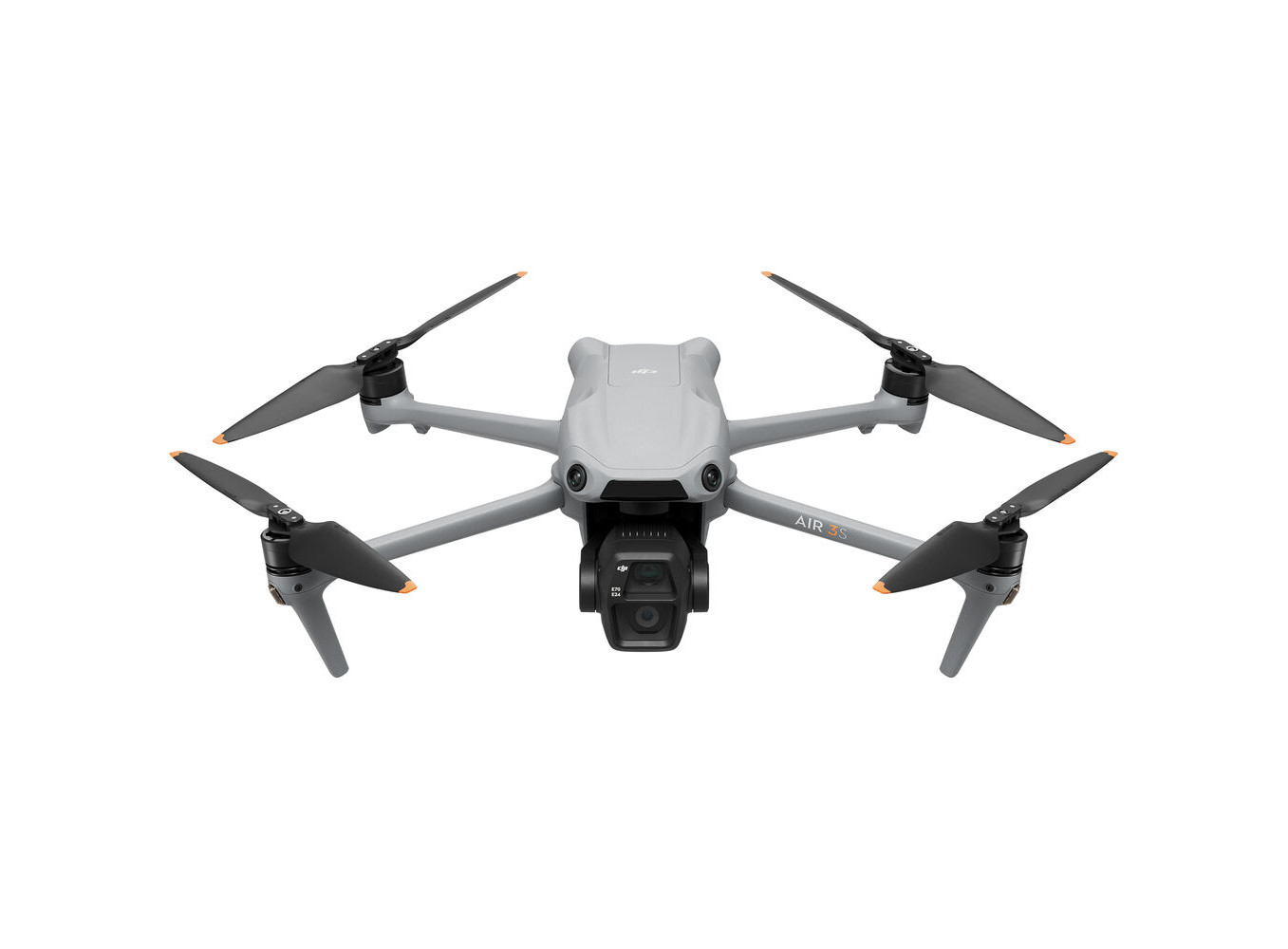

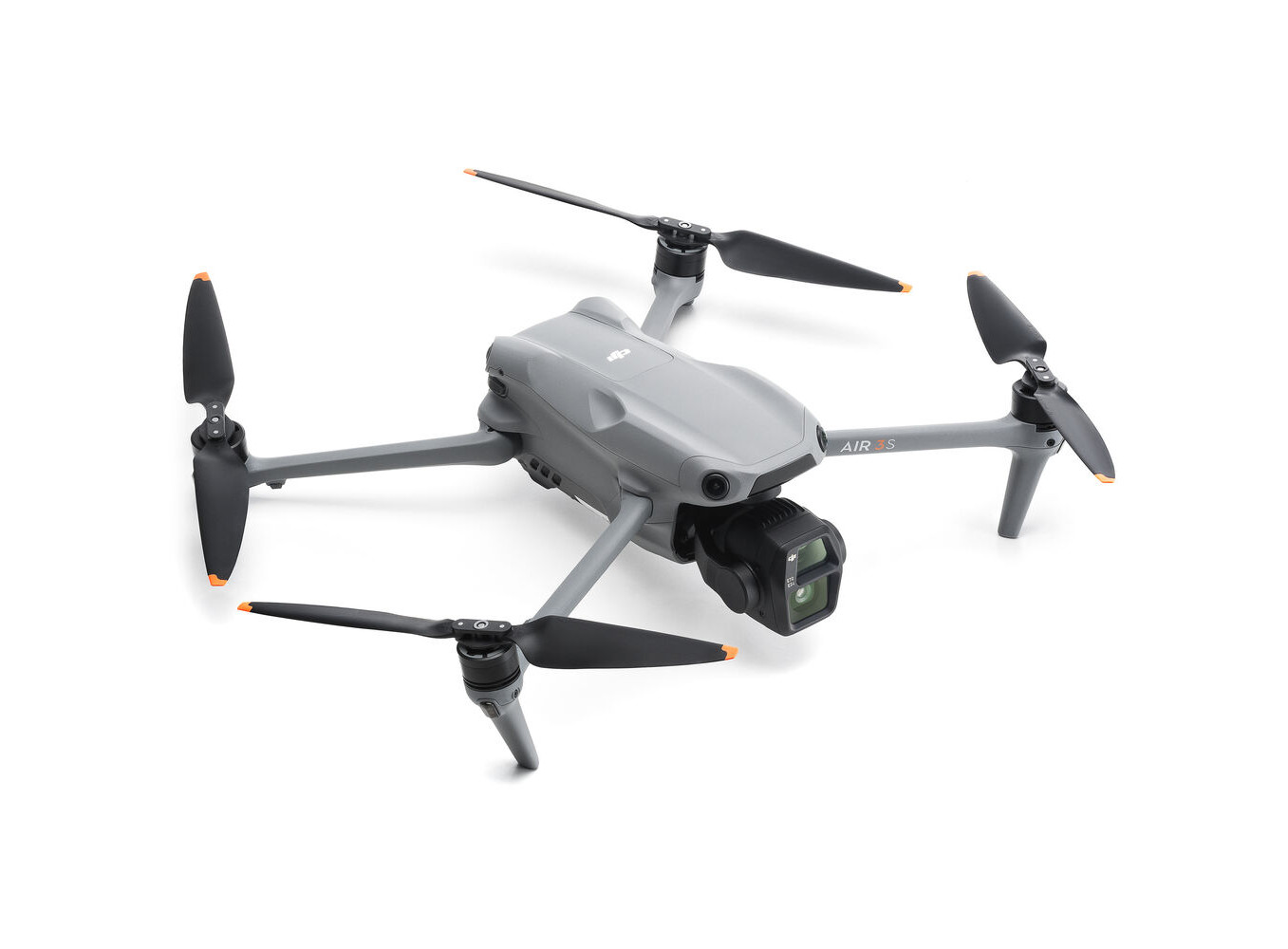

Aircraft

  • Takeoff Weight

  • 724 g

  • Dimensions

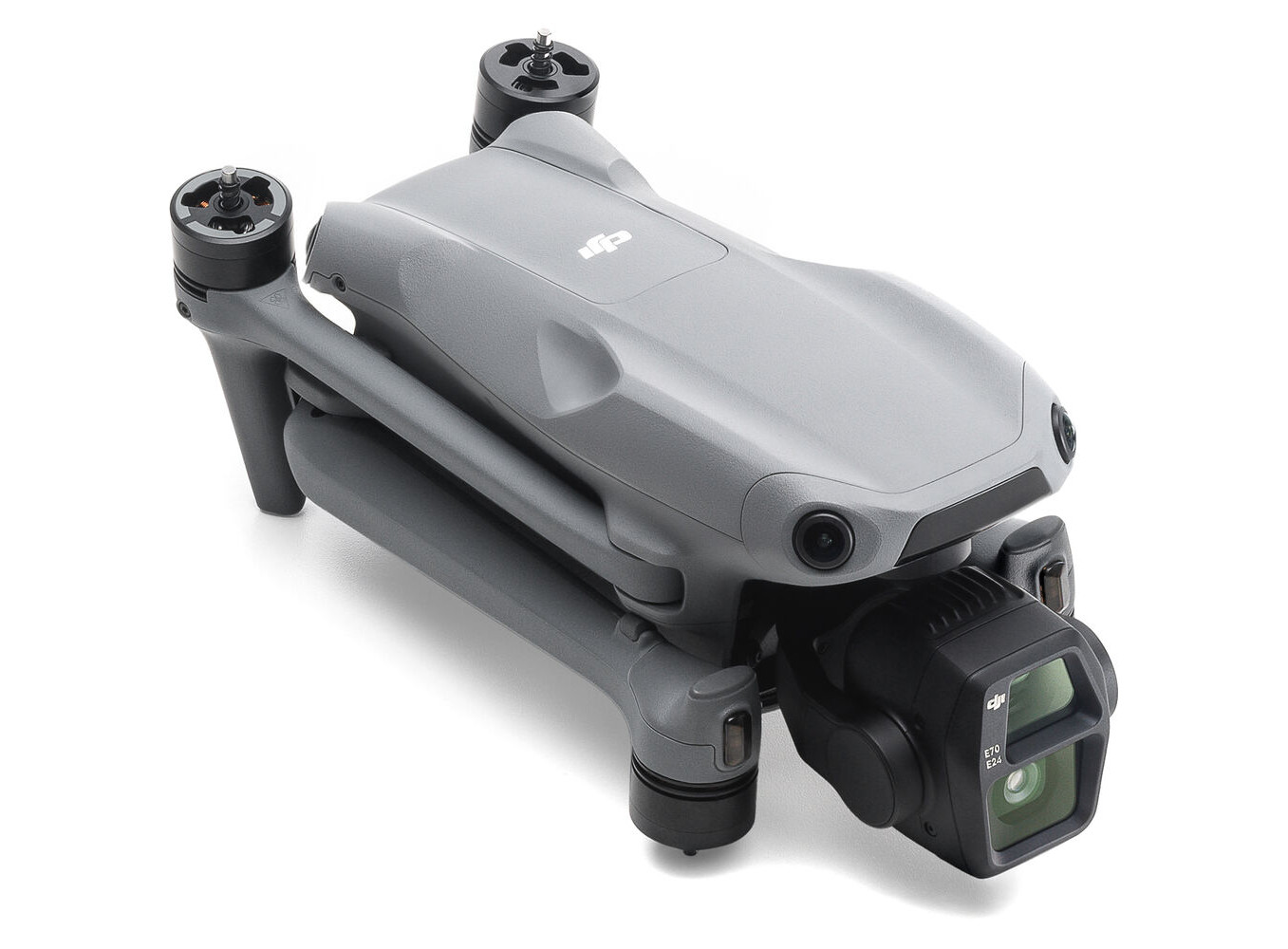

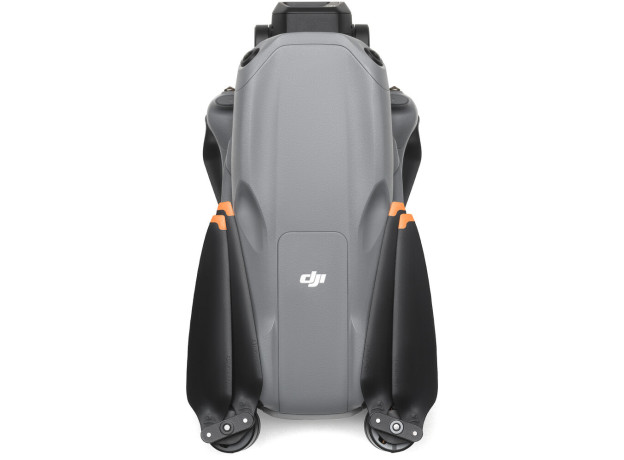

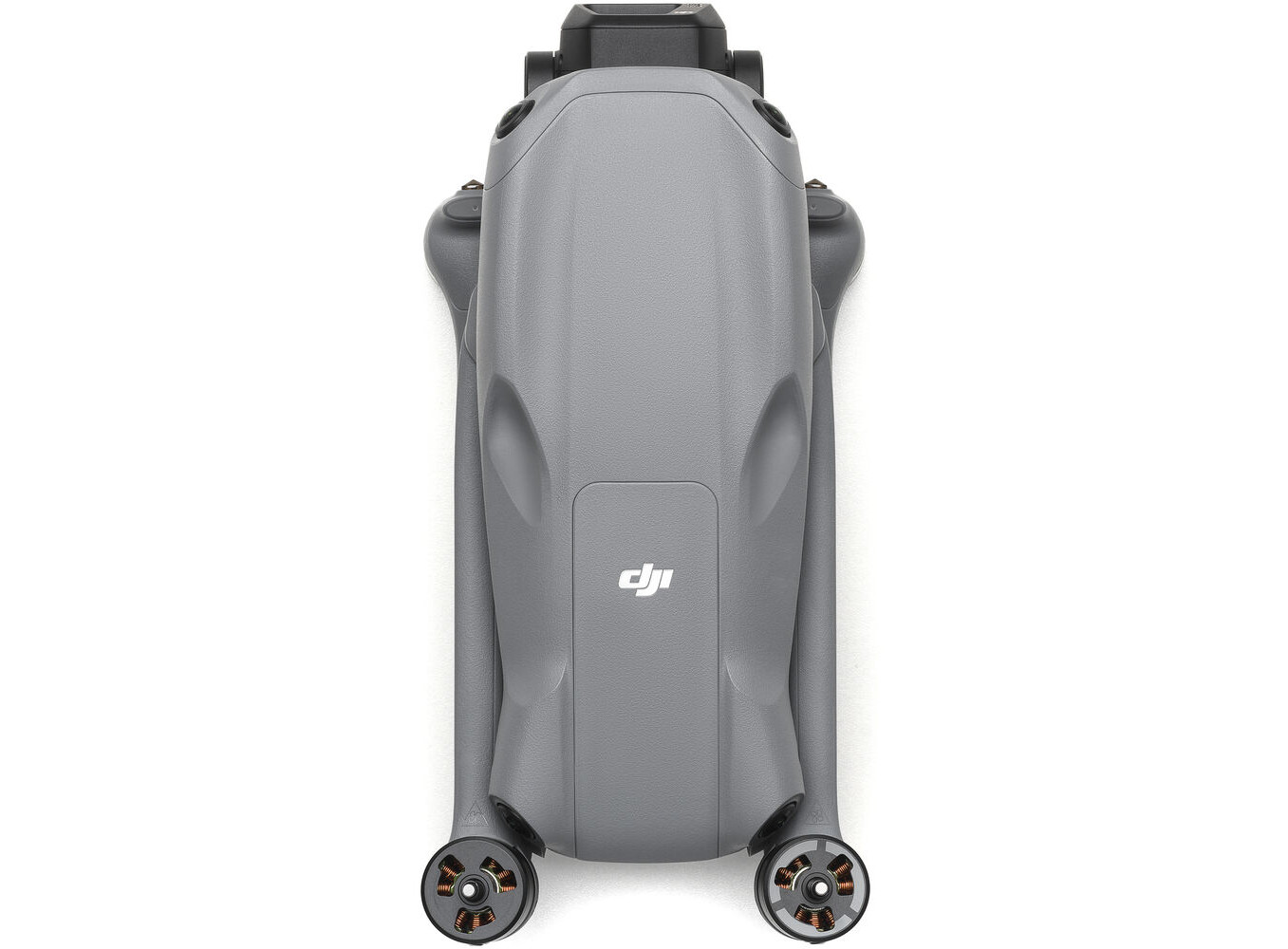

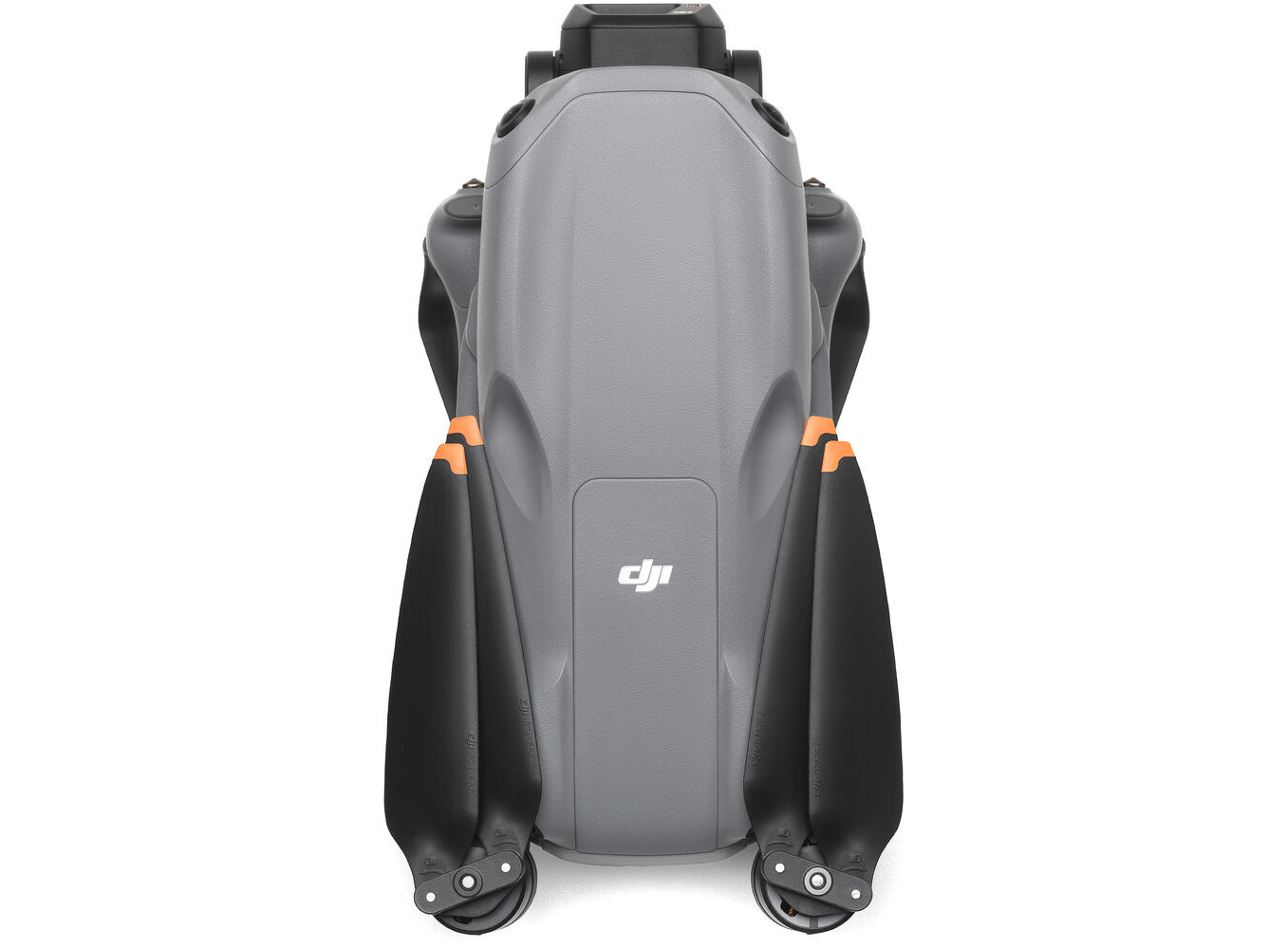

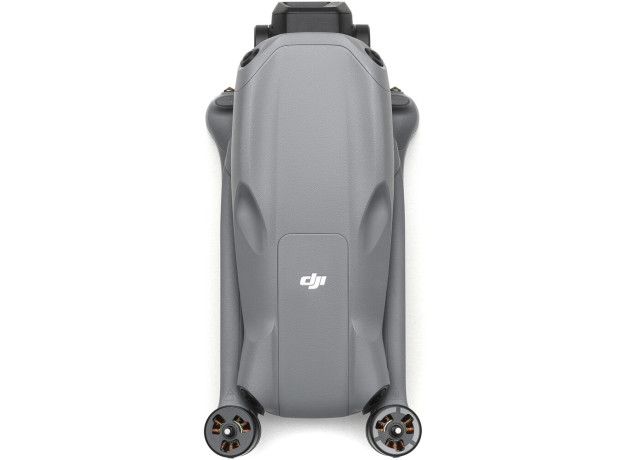

  • Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H)

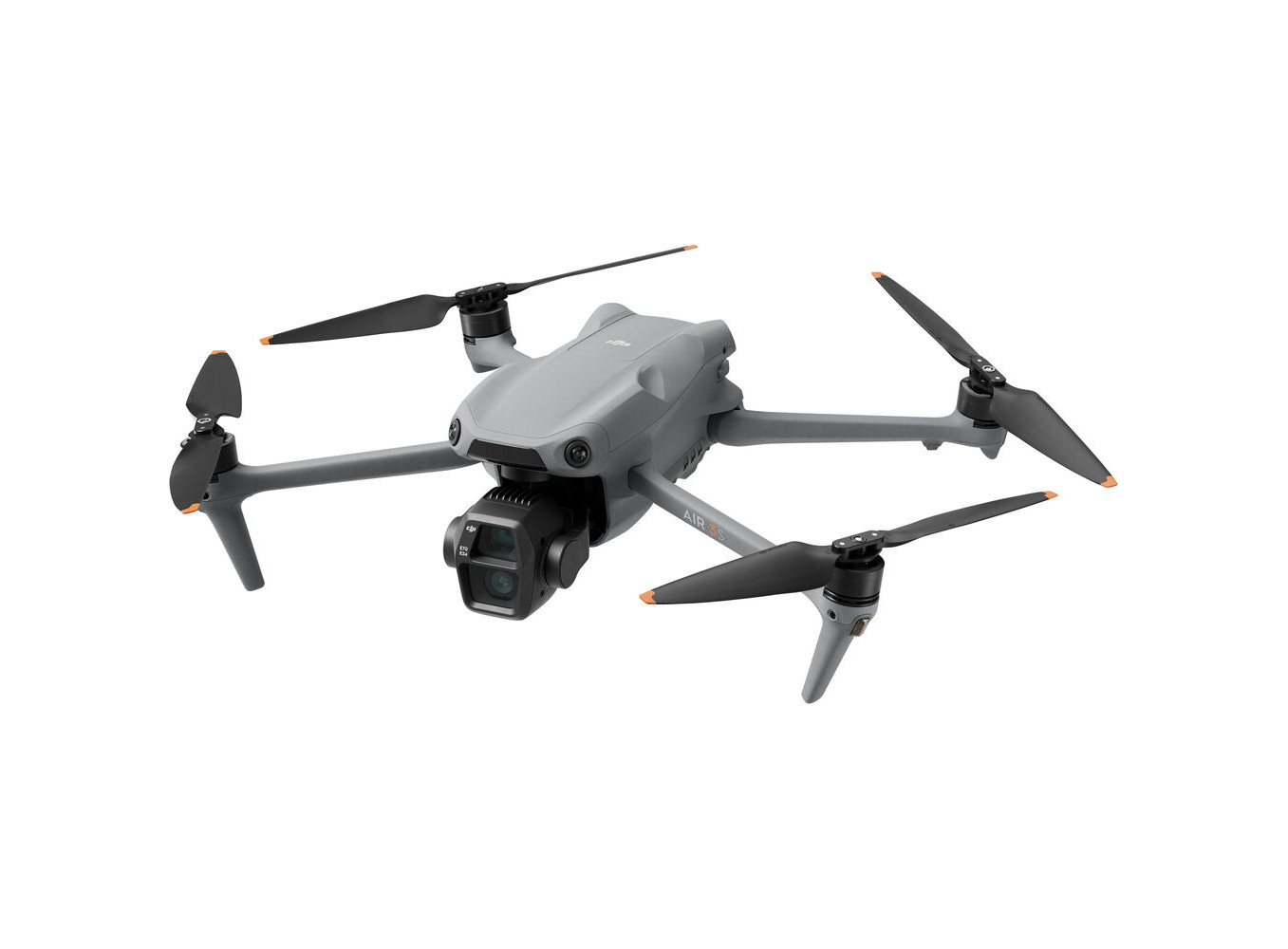

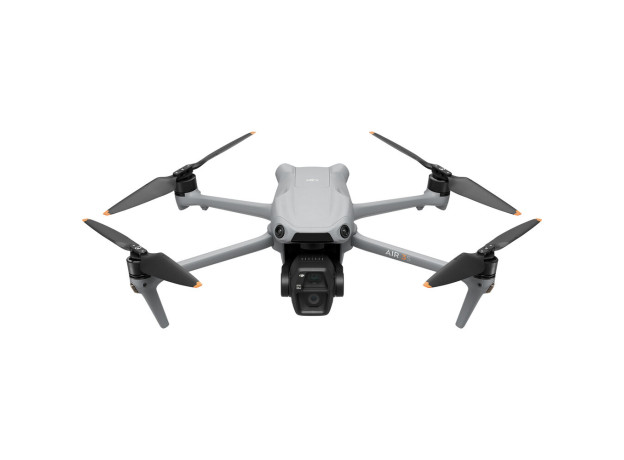

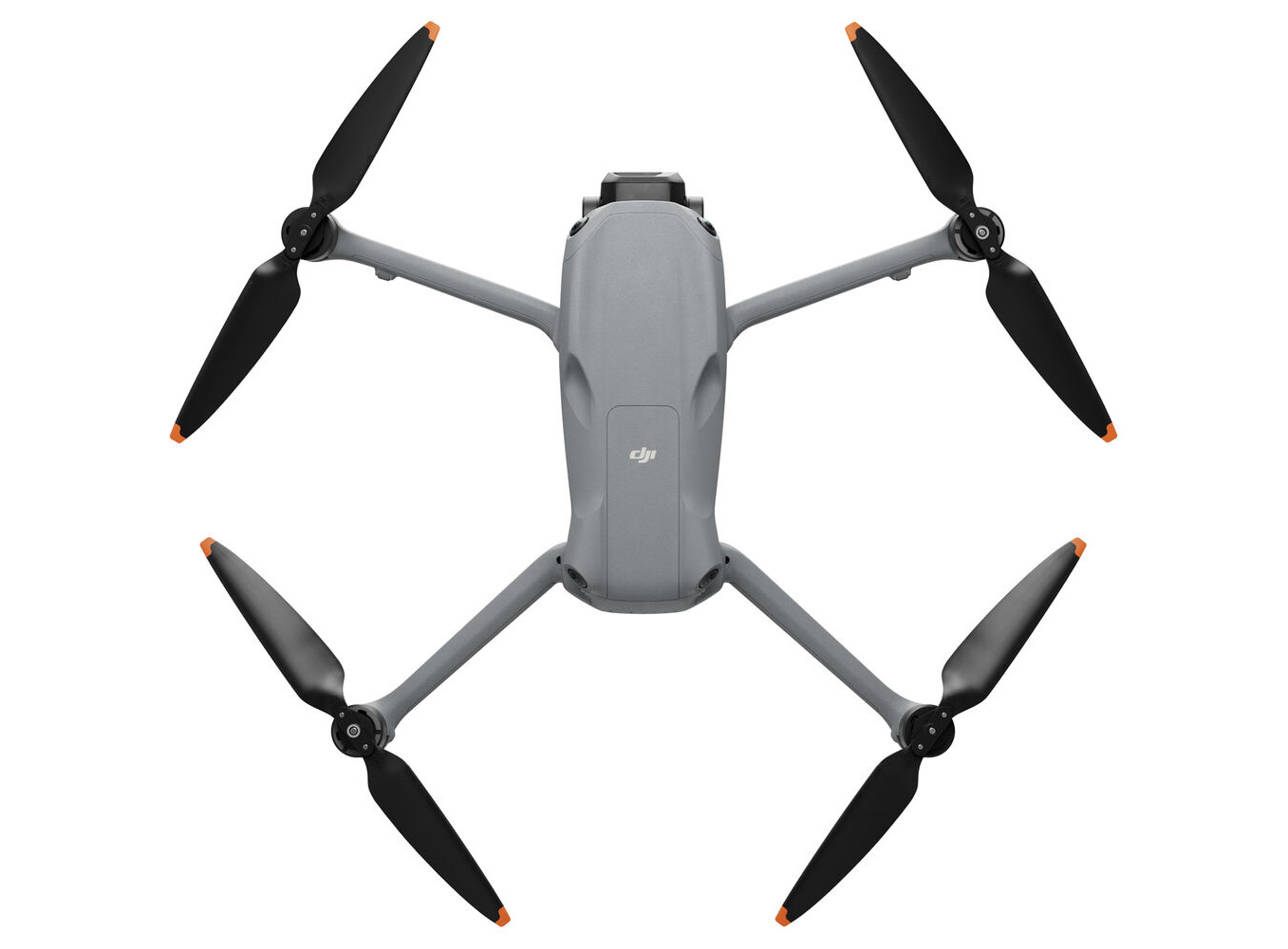

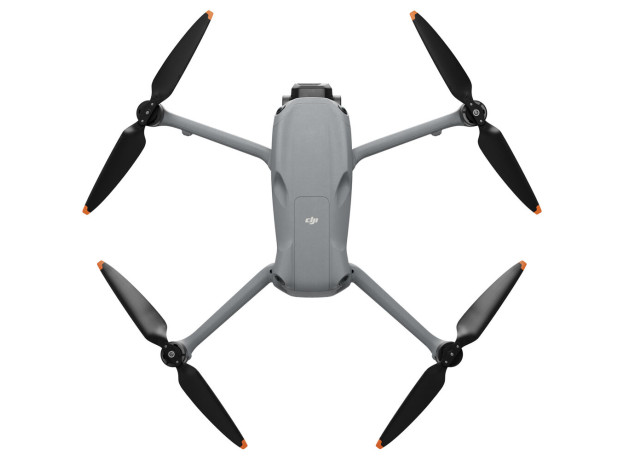

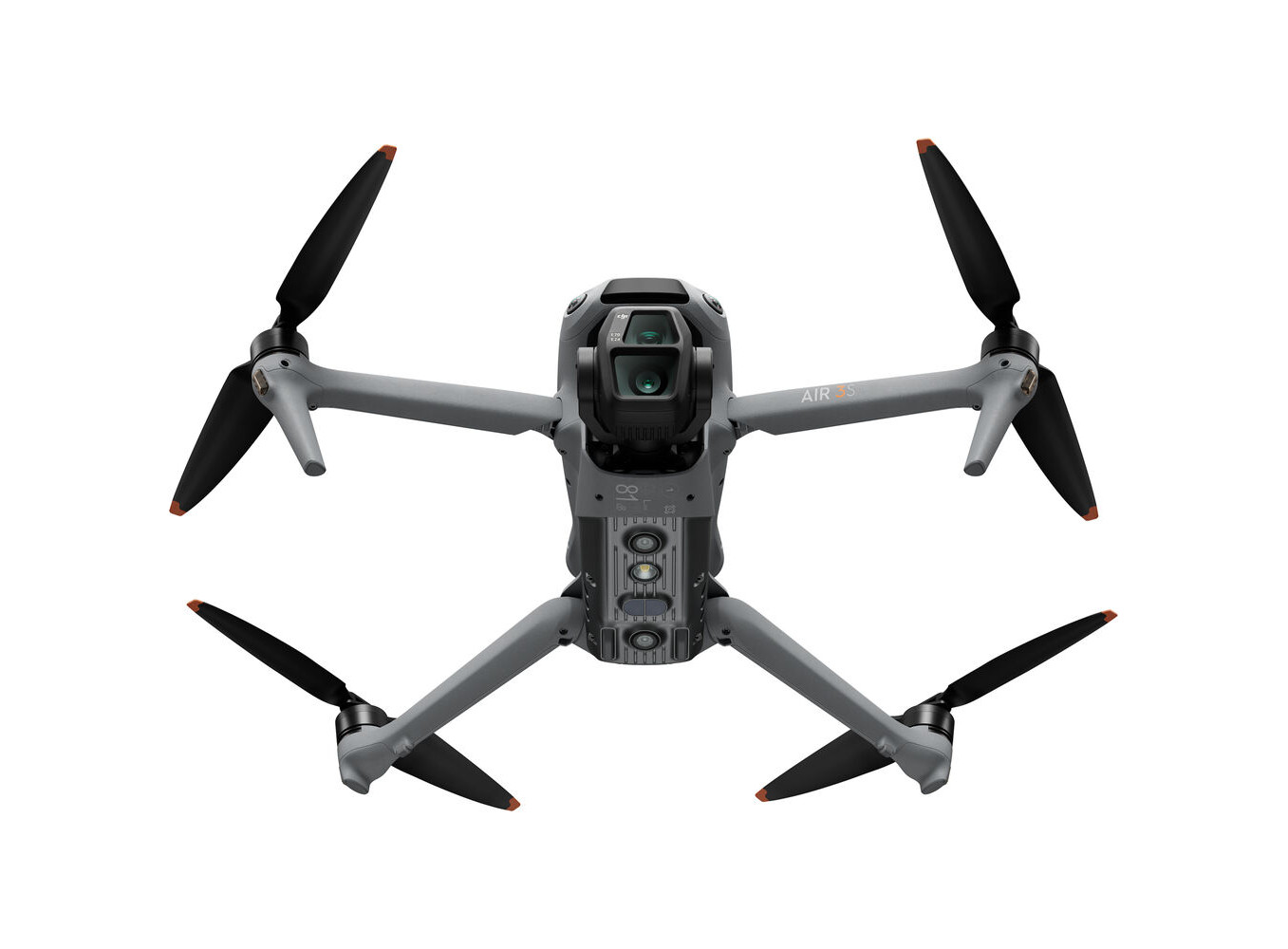

    Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H)

  • Max Ascent Speed

  • 10 m/s

  • Max Descent Speed

  • 10 m/s

  • Max Horizontal Speed

  • At equivalent sea level and in an equivalent windless environment:
    21 m/s*

    At equivalent sea level and with an equivalent tailwind of 6 m/s, flying with the wind:
    27 m/s*

    Measured in a controlled wind tunnel environment, with the aircraft ascending vertically to a height of 1.5 meters above the ground in Sport mode. Actual experience may vary depending on the environment, usage, and firmware version.
    19 m/s in the EU region.

  • Max Takeoff Altitude

  • 6000 m

  • Max Flight Time

  • 45 minutes

    Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 32.4 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

  • Max Hovering Time

  • 41 minutes

    Measured by DJI Air 3S hovering in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

  • Max Flight Distance

  • 32 km

    Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 48.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

  • Max Wind Speed Resistance

  • 12 m/s

  • Max Pitch Angle

  • 36°

  • Operating Temperature

  • -10° to 40° C (14° to 104° F)

  • Global Navigation Satellite System

  • GPS + Galileo + BeiDou

  • Hovering Accuracy Range

  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with satellite positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±0.5 m (with satellite positioning)

  • Internal Storage

  • 42 GB

  • Class

  • C1 (EU)

Camera

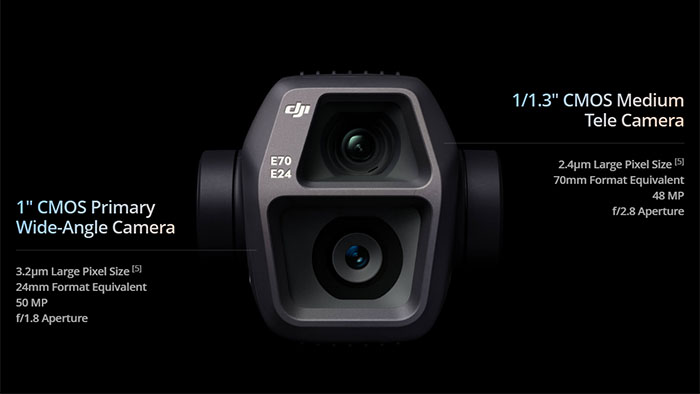

  • Image Sensor

  • Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels
    Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels

  • Lens

  • Wide-Angle Camera
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/1.8
    Focus: 0.5 m to ∞

    Medium Tele Camera
    FOV: 35°
    Format Equivalent: 70 mm
    Aperture: f/2.8
    Focus: 3 m to ∞

  • ISO Range

  • Video
    Normal:
    100-12800 (Normal)
    100-3200 (D-Log M)
    100-3200 (HLG)
    Slow Motion:
    100-6400 (Normal)
    100-3200 (D-Log M)
    100-3200 (HLG)

    100-6400 (12 MP)
    100-3200 (48 MP and 50 MP)

  • Shutter Speed

  • Wide-Angle Camera
    12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
    50MP Photo: 1/8000-2 s

    Medium Tele Camera
    12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
    48MP Photo: 1/8000-2 s

  • Max Image Size

  • Wide-Angle Camera: 8192×6144
    Medium Tele Camera: 8064×6048

  • Still Photography Modes

  • Wide-Angle Camera
    Single Shot: 12 MP and 50 MP
    Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
    Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
    Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s

    Medium Tele Camera
    Single Shot: 12 MP and 48 MP
    Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
    Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step
    Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

  • Photo Format

  • JPEG/DNG (RAW)

  • Video Resolution

  • Wide-Angle Camera/Medium Tele Camera:
    H.264/H.265
    4K: 3840×2160@24/25/30/48/50/60/120*fps
    FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
    2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

    * Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.

  • Video Format

  • MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

  • Max Video Bitrate

  • H.264/H.265: 130 Mbps*

    * When shooting 4K/120fps video in D-Log M mode with the DJI Air 3S, the video encoding bitrate can reach up to 130Mbps, corresponding to a video stream frame rate of 120fps. However, since slow-motion video files are encapsulated at 30fps, the video length displayed on the player is four times the recording duration, and the bitrate of the parsed encapsulated file is approximately one-fourth of the original encoding bitrate.

  • Supported File System

  • exFAT

  • Color Mode and Sampling Method

  • Wide-Angle/Medium Tele Camera
    Normal (FHD/2.7K): 8-bit 4:2:0 (H.264)
    Normal (FHD/2.7K): 10-bit 4:2:0 (H.265)
    HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265)
    Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265)

  • Digital Zoom

  • Wide-Angle Camera: 1-2.9x
    Medium Tele Camera: 3-9x

Gimbal

  • Stabilization

  • 3-axis mechanical gimbal (tilt, roll, pan)

  • Mechanical Range

  • Tilt: -135° to 70°
    Roll: -50° to 50°
    Pan: -27° to 27°

  • Controllable Range

  • Tilt: -90° to 60°
    Pan: -5° to 5°

  • Max Control Speed (tilt)

  • 100°/s

  • Angular Vibration Range

  • ±0.0037°

Sensing

  • Sensing Type

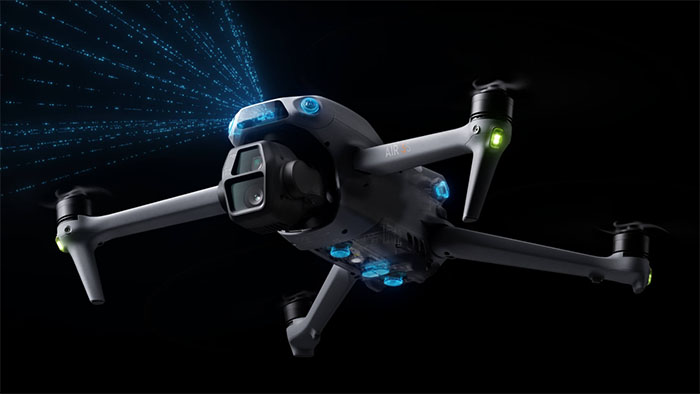

  • Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

  • Forward

  • Measurement Range: 0.5-18 m
    Detection Range: 0.5-200 m
    Effective Sensing Speed: Flight Speed ≤ 15 m/s
    FOV: Horizontal 90°, Vertical 72°

  • Backward

  • Measurement Range: 0.5-18 m
    Effective Sensing Speed: Flight Speed ≤ 14 m/s
    FOV: Horizontal 90°, Vertical 72°

  • Lateral

  • Measurement Range: 0.5-30 m
    Effective Sensing Speed: Flight Speed ≤ 14 m/s
    FOV: Horizontal 90°, Vertical 72°

  • Upward

  • Measurement Range: 0.5-18 m
    Effective Sensing Speed: Flight Speed ≤ 6 m/s
    FOV: Front and Back 72°, Left and Right 90°

  • Downward

  • Measurement Range: 0.3-14 m
    Effective Sensing Speed: Flight Speed ≤ 6 m/s
    FOV: Front and Back 106°, Left and Right 90°

  • Operating Environment

  • Forward, Backward, Left, Right, and Upward:
    Surfaces with discernible patterns and adequate lighting (lux > 1)
    Downward:
    Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)

  • 3D Infrared Sensor

  • Forward-Facing LiDAR
    Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
    FOV: Up and Down 60°, Left and Right 60°

    Downward-Facing Infrared Sensor
    Measurement Range: 0.3-8 m (reflectivity > 10%)
    FOV: Front and Back 60°, Left and Right 60°

Video Transmission

  • Video Transmission System

  • O4

  • Live View Quality

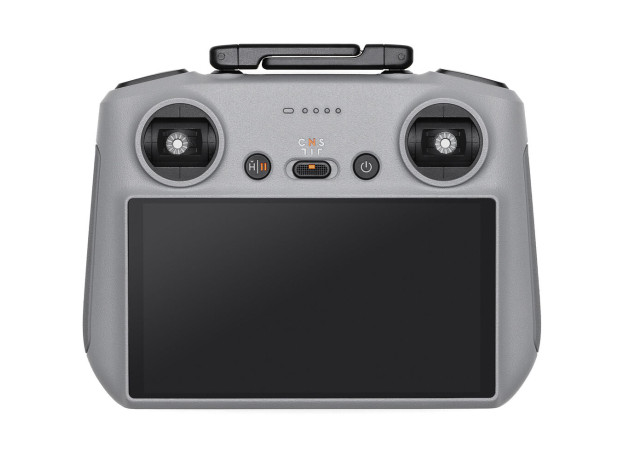

  • Remote Controller:
    1080p/30fps, 1080p/60fps

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.170-5.250 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

  • Transmitter Power (EIRP)

  • 2.4 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.1 GHz:
    < 23 dBm (CE)

    5.8 GHz:
    < 33 dBm (FCC)
    < 30 dBm (SRRC)
    < 14 dBm (CE)

  • Max Transmission Distance (unobstructed, free of interference)

  • FCC: 20 km
    CE: 10 km
    SRRC: 10 km
    MIC: 10 km

    Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

  • Max Transmission Distance (unobstructed, with interference)

  • Strong Interference: Urban landscape, approx. 1.5-4 km
    Medium Interference: Suburban landscape, approx. 4-10 km
    Low Interference: Suburb/Seaside, approx. 10-20 km

    Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

  • Max Transmission Distance (obstructed, with interference)

  • Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
    Low Interference and Obstructed by Trees: Approx. 0.5-3 km

    Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

  • Max Download Speed

  • O4:
    10 MB/s (with DJI RC-N3)
    10 MB/s (with DJI RC 2)
    Wi-Fi 5: 30 MB/s*

    * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

  • Lowest Latency

  • Aircraft + Remote Controller: Approx. 120 ms

    Depending on the actual environment and mobile device.

  • Antenna

  • 6 antennas, 2T4R

Wi-Fi

  • Protocol

  • 802.11 a/b/g/n/ac

  • Operating Frequency

  • 2.400-2.4835 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP)

  • 2.4 GHz:
    < 20 dBm (FCC/CE/SRRC/MIC)

    5.8 GHz:
    < 20 dBm (FCC/SRRC)
    < 14 dBm (CE)

Bluetooth

  • Protocol

  • Bluetooth 5.2

  • Operating Frequency

  • 2.400-2.4835 GHz

  • Transmitter Power (EIRP)

  • < 10 dBm

Battery

  • Capacity

  • 4276 mAh

  • Weight

  • Approx. 247 g

  • Nominal Voltage

  • 14.6 V

  • Max Charging Voltage

  • 17.2 V

  • Type

  • Li-ion 4S

  • Energy

  • 62.5 Wh

  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

  • Charging Time

  • Approx. 80 minutes (with DJI 65W Portable Charger)
    Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

  • Input

  • DJI 65W Portable Charger:
    100-240 V (AC), 50-60 Hz, 2 A

    DJI 100W USB-C Power Adapter:
    100-240 V (AC), 50-60 Hz, 2.5 A

  • Output

  • DJI 65W Portable Charger:
    USB-C
    5 V, 5 A
    9 V, 5 A
    12 V, 5 A
    15 V, 4.3 A
    20 V, 3.25 A
    5-20 V, 3.25 A

    USB-A
    5 V, 2 A

    DJI 100W USB-C Power Adapter:
    Max 100 W (total)

    When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.

  • Rated Power

  • DJI 65W Portable Charger: 65 W
    DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

  • Input

  • USB-C: 5-20 V, max 5 A

  • Output (power accumulation)

  • Battery Port: 12-17.2 V, 3.5 A

  • Output (charging)

  • Battery Port: 12-17.2 V, max 5 A

  • Output (USB)

  • USB-C:
    5 V, 3 A
    9 V, 5 A
    12 V, 5 A
    15 V, 5 A
    20 V, 4.1 A

  • Charging Type

  • Three batteries charged in sequence

  • Compatibility

  • DJI Air 3 Intelligent Flight Battery
    DJI Air 3S Intelligent Flight Battery

Car Charger

  • Input

  • Car Power Input:
    12.7-16 V, 6.5 A, rated voltage 14 V (DC)

  • Output

  • USB-C:
    5 V, 5 A
    9 V, 5 A
    12 V, 5 A
    15 V, 4.3 A
    20 V, 3.25 A
    5-20 V, 3.25 A

    USB-A:
    5 V, 2 A

  • Rated Power

  • 65 W

  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

Storage

  • Recommended microSD Cards

  • Lexar 1066x 64GB V30 U3 A2 microSDXC
    Lexar 1066x 128GB V30 U3 A2 microSDXC
    Lexar 1066x 256GB V30 U3 A2 microSDXC
    Lexar 1066x 512GB V30 U3 A2 microSDXC
    Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
    Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
    Kingston Canvas GO! Plus 256GB V30 U3 A2 microSDXC
    Kingston Canvas GO! Plus 512GB V30 U3 A2 microSDXC
