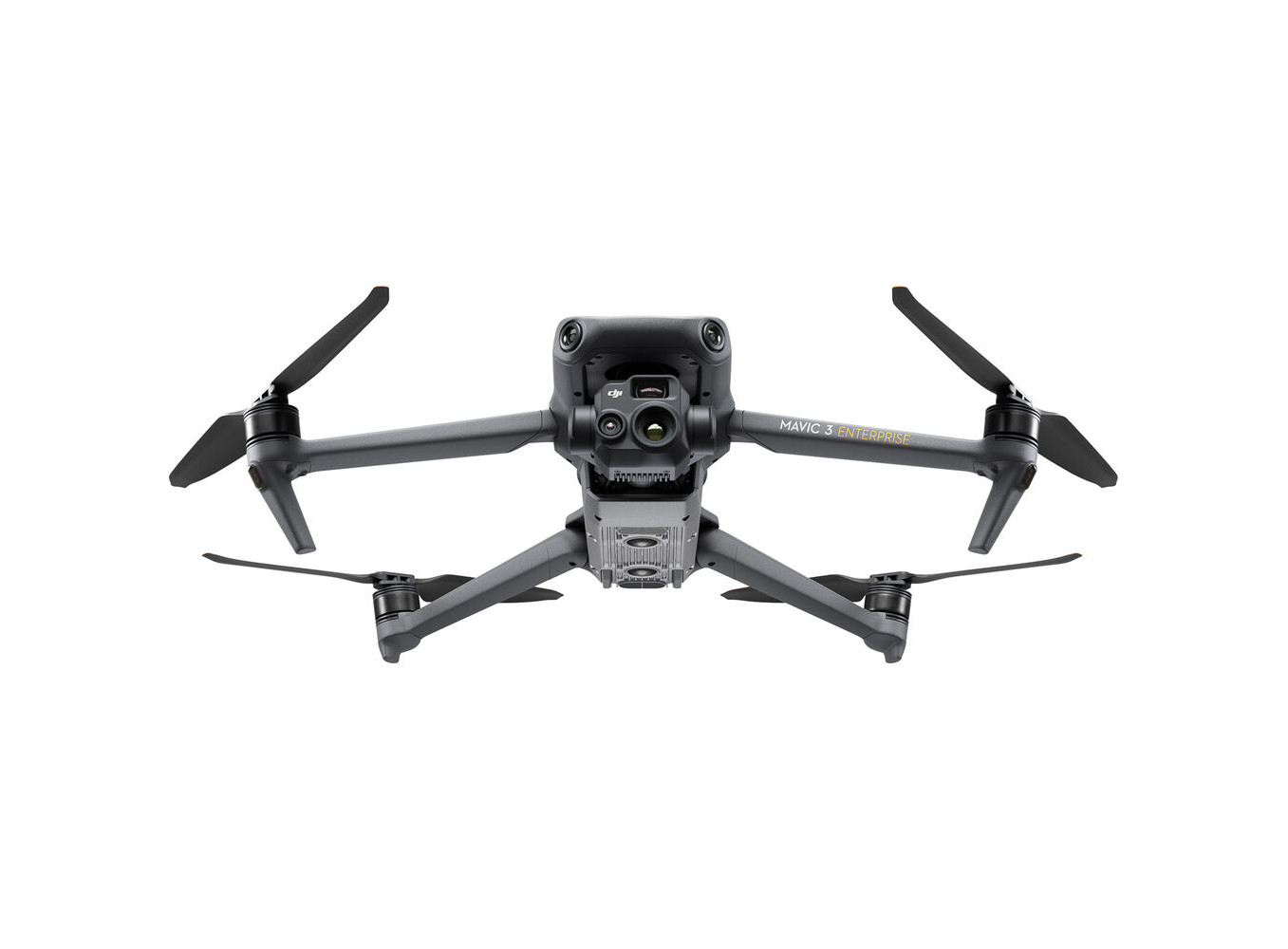

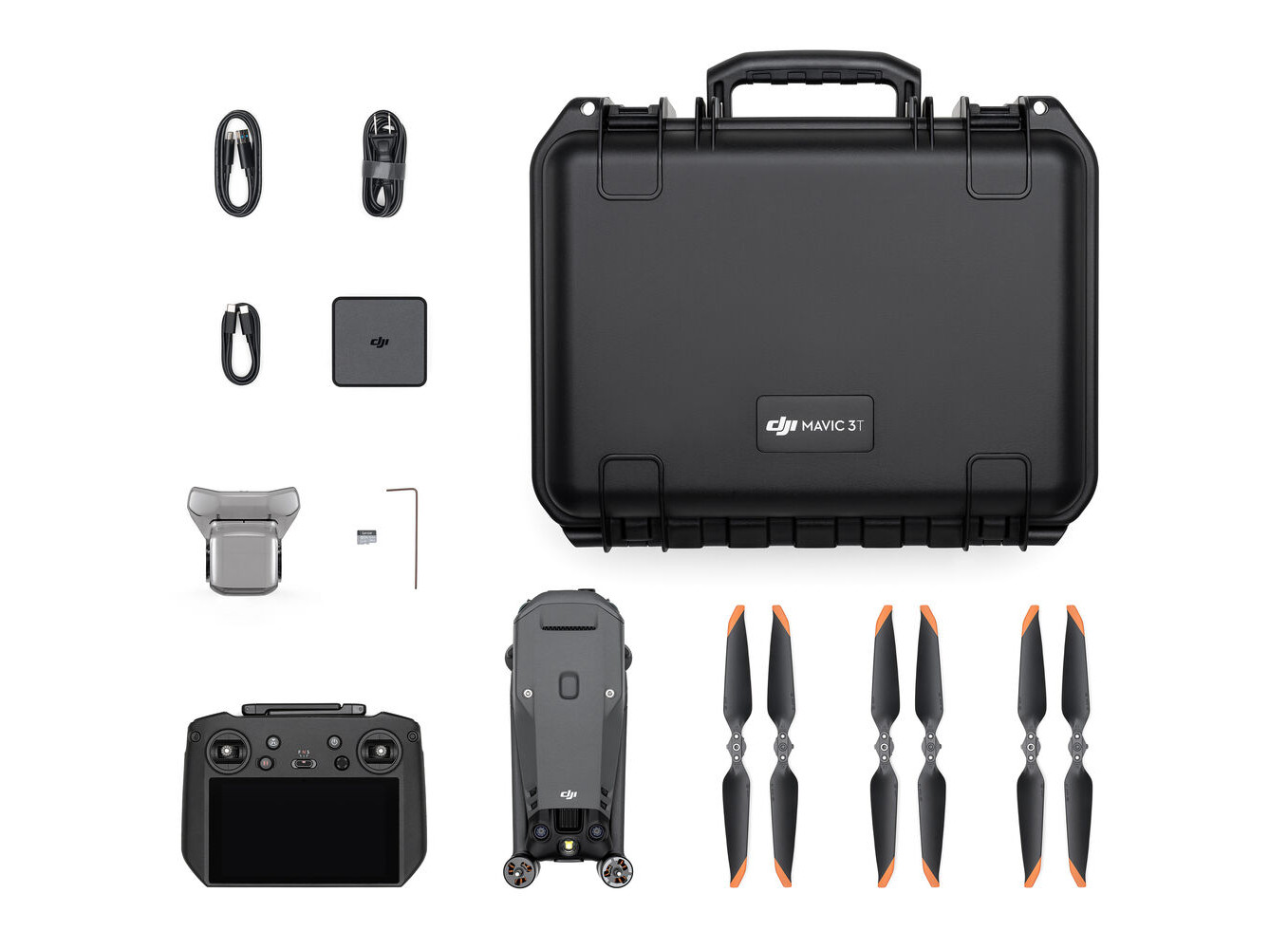

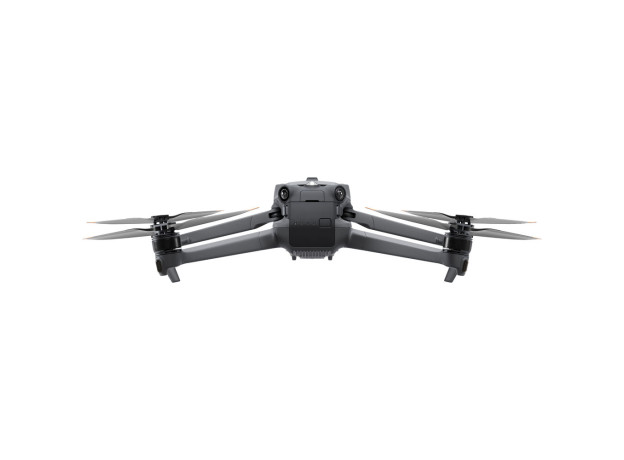

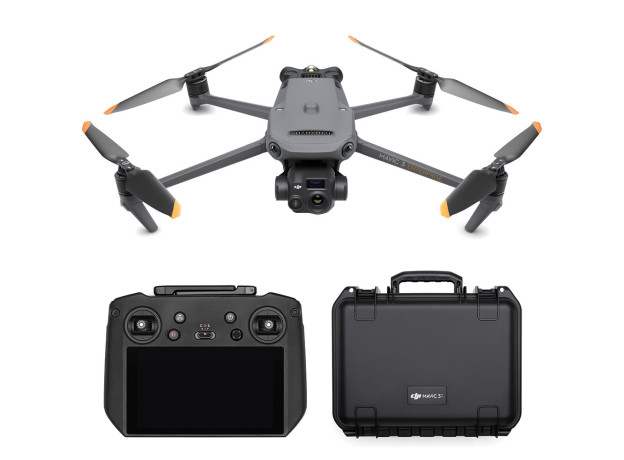

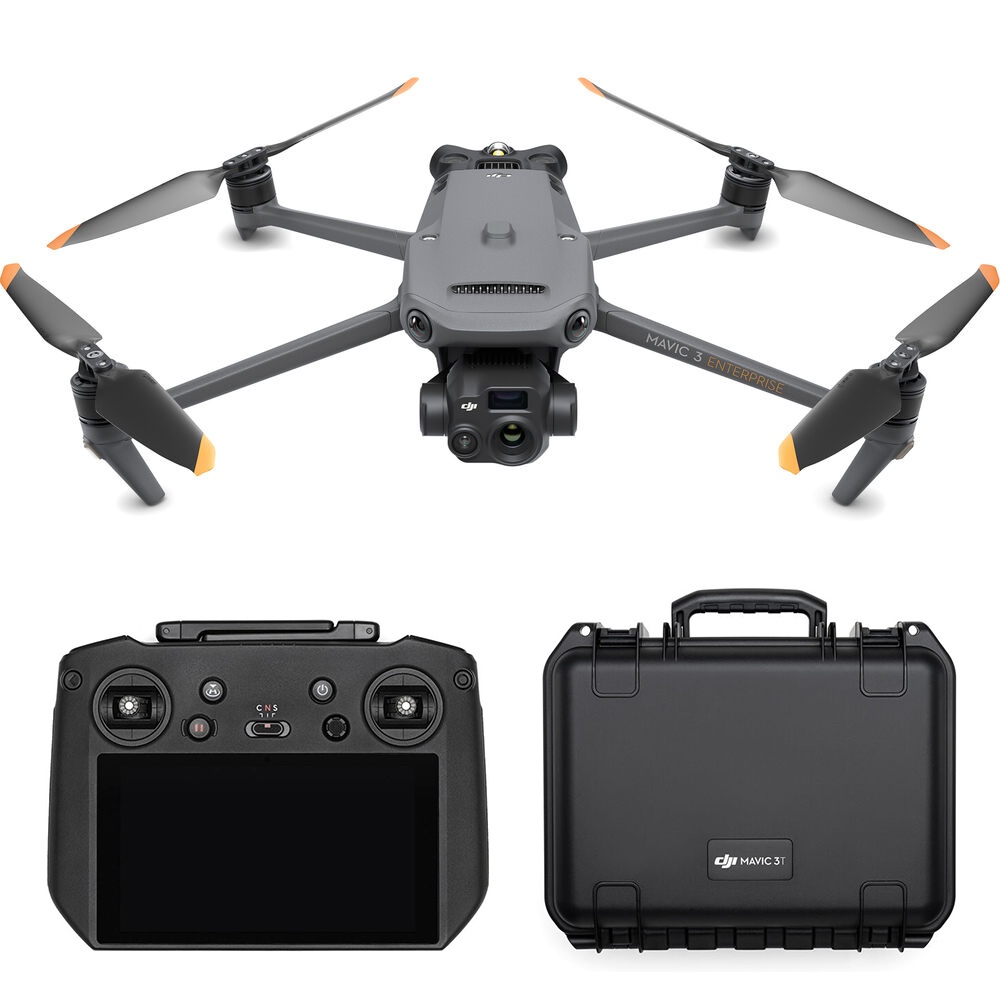

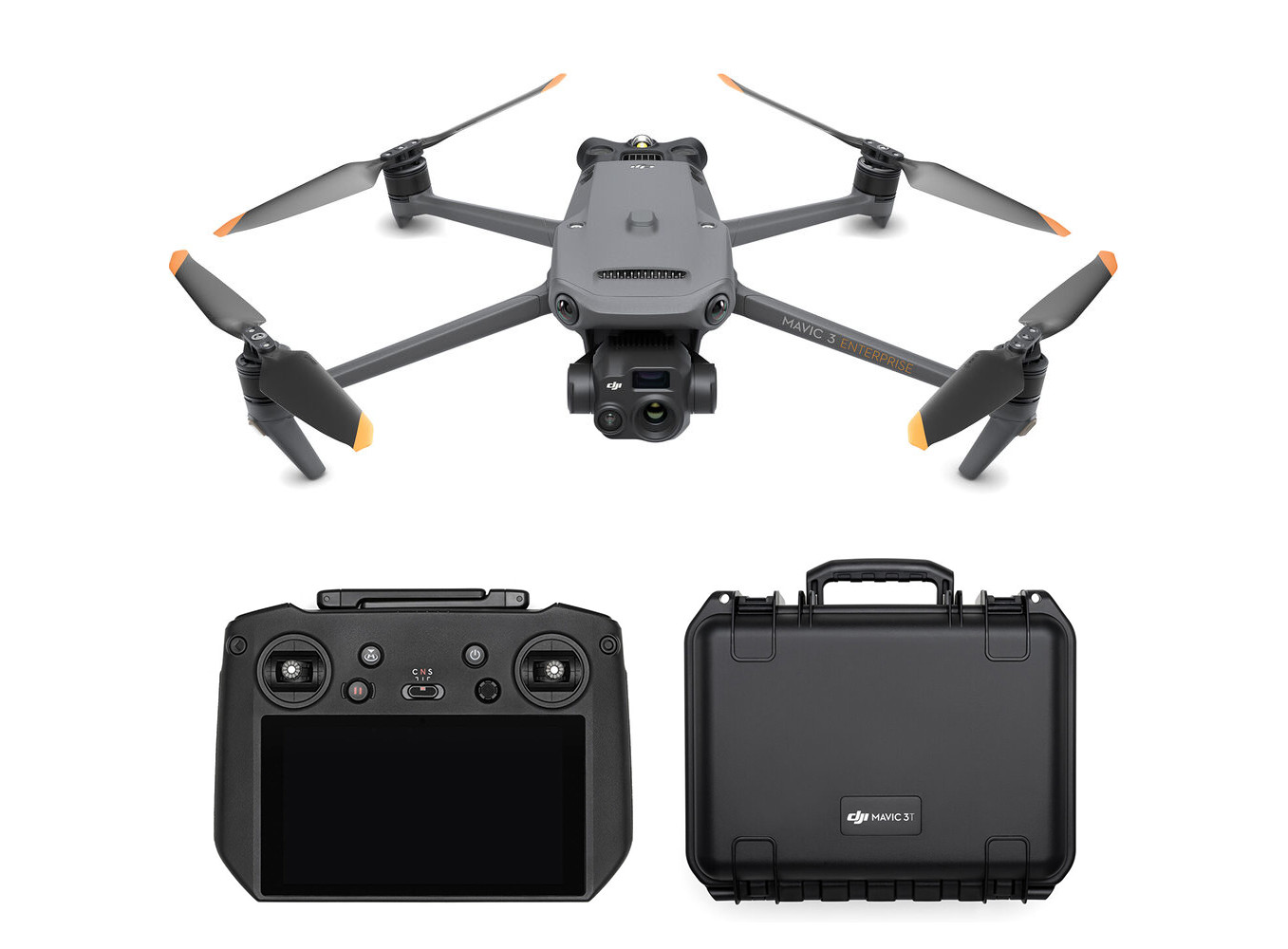

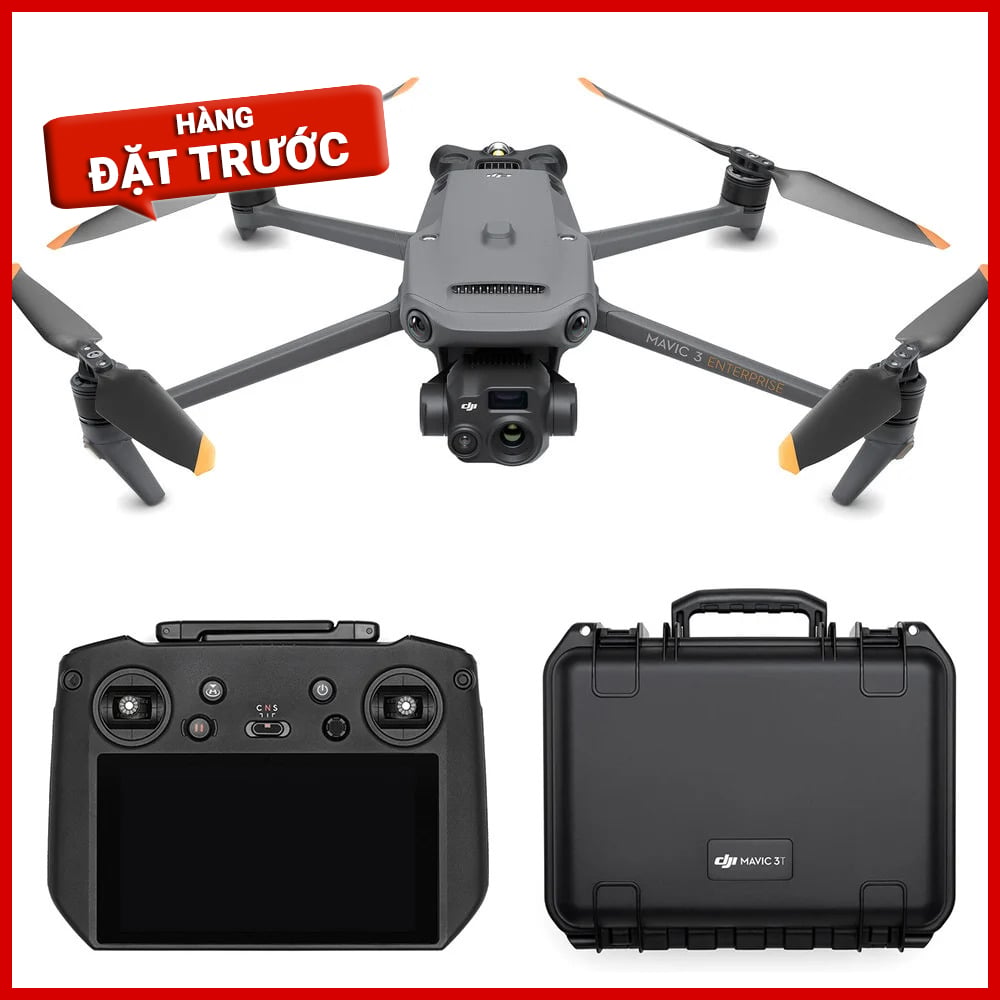

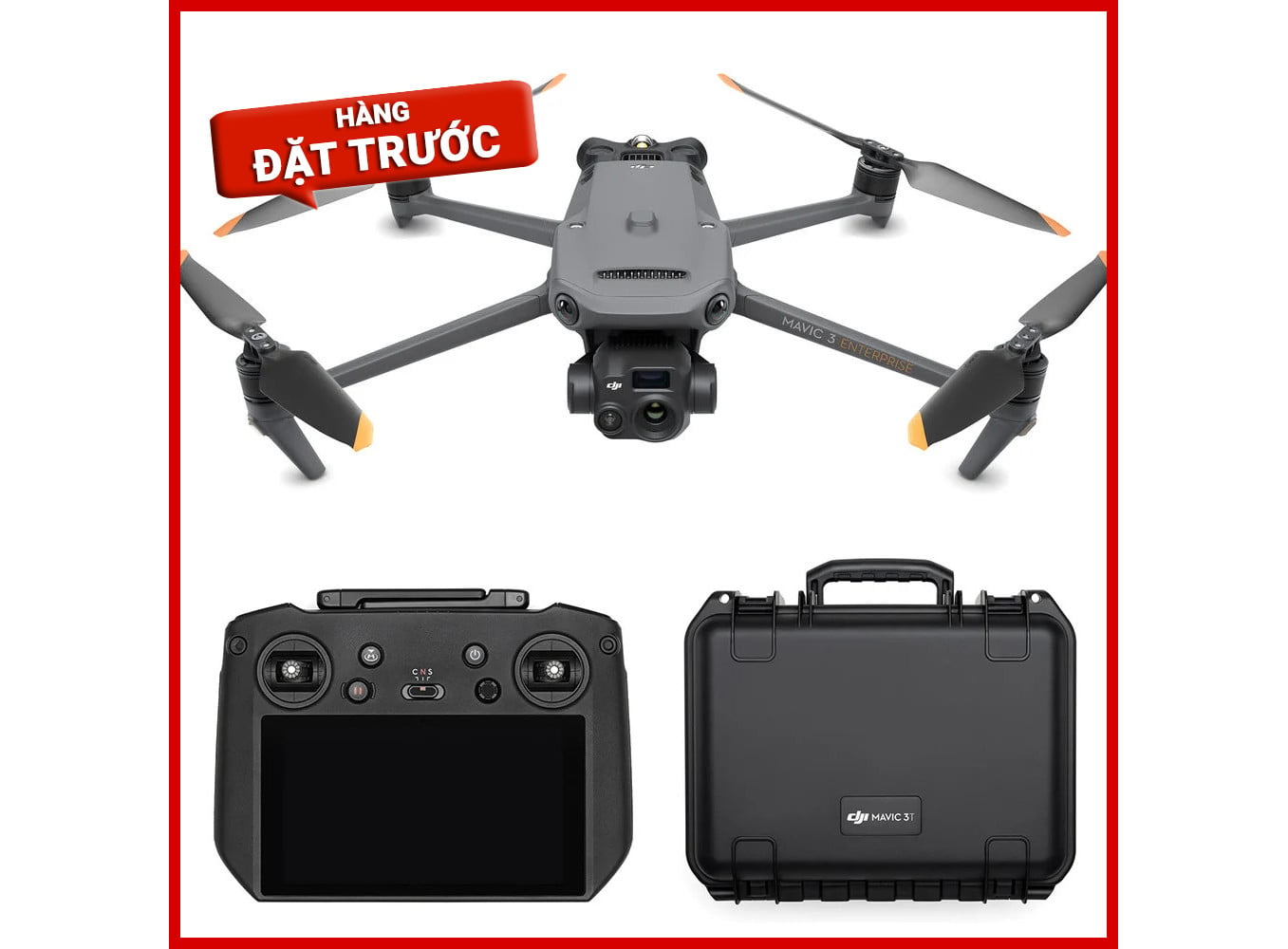

DJI Mavic 3 Thermal + Bộ điều khiển DJI RC Pro Enterprise (Chính hãng)

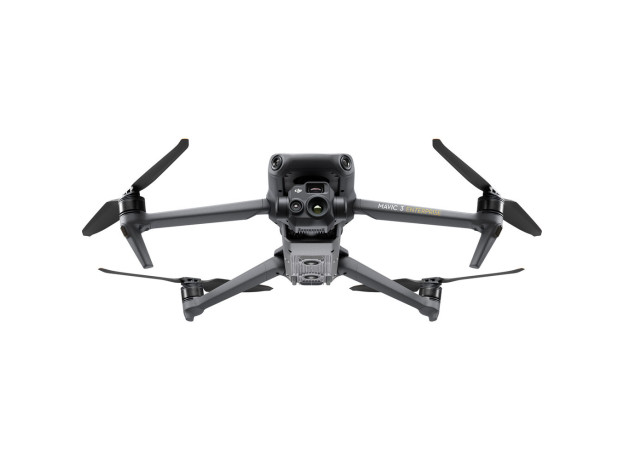

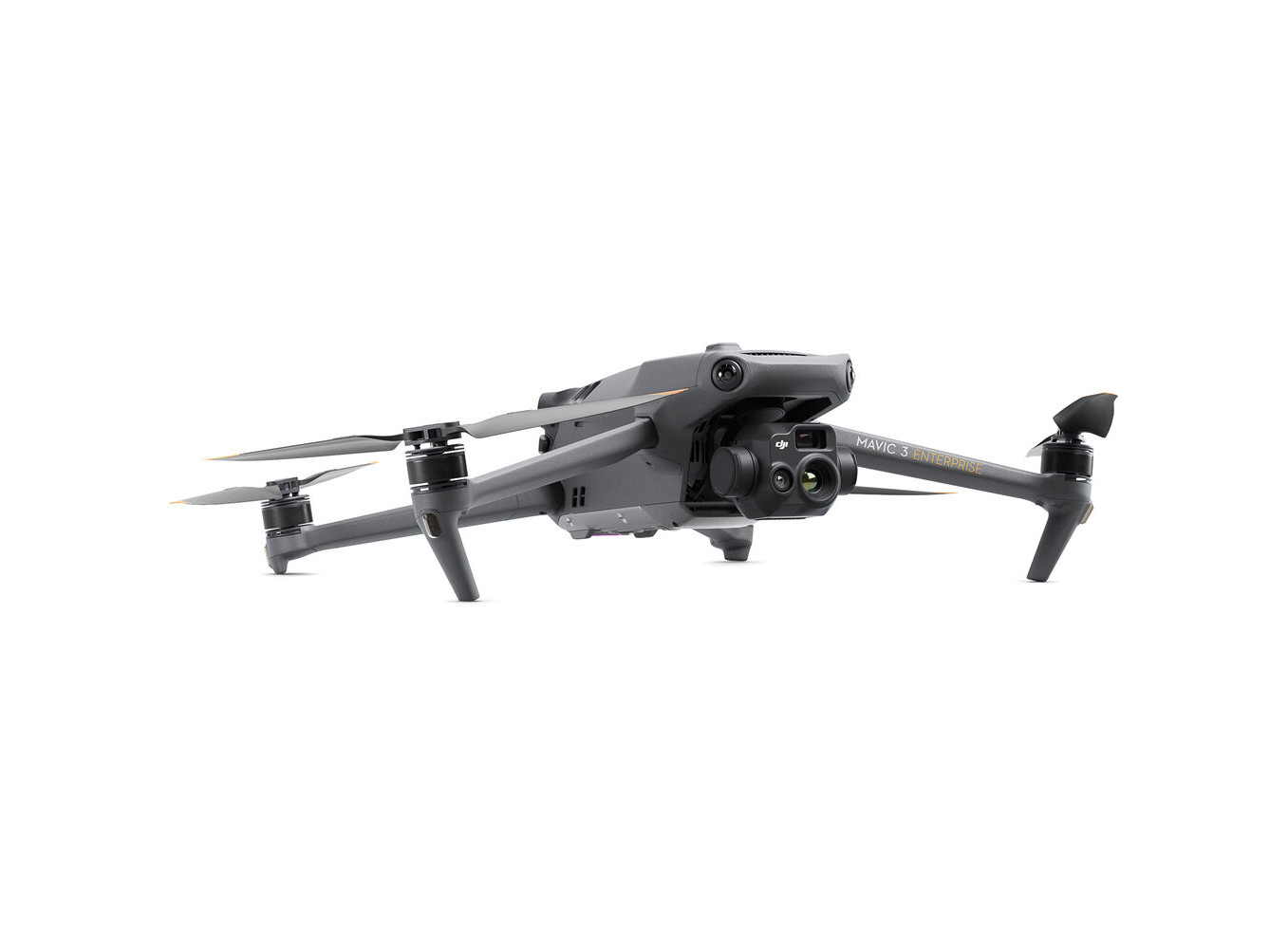

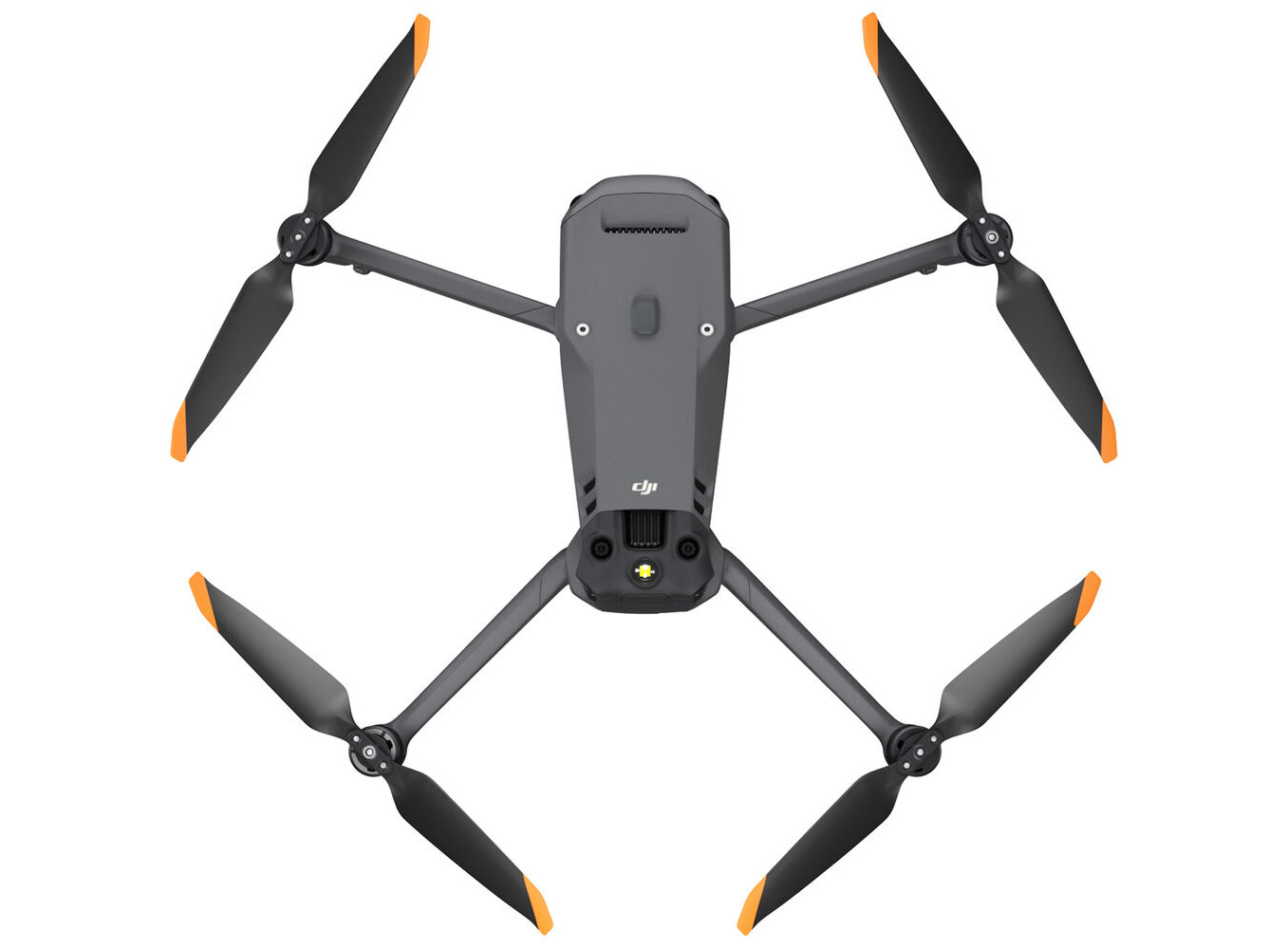

Aircraft

• Weight (with propellers, without accessories) ^[1]

• DJI Mavic 3E: 915 g
  DJI Mavic 3T/3TA: 920 g

• Max Takeoff Weight

• DJI Mavic 3E/3T/3TA: 1050 g

  ^{* With DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers, the max takeoff weight of DJI Mavic 3E/3T/3TA is 899 g.
  ** Note: A Mavic 3 Enterprise Series drone with a C2 label cannot be considered C1-compliant if used with an EU-C1 version battery.}

• Dimensions

• Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
  Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)

• Diagonal Distance

• 380.1 mm

• Max Ascent Speed

• 6 m/s (Normal Mode)
  8 m/s (Sport Mode)

• Max Descent Speed

• 6 m/s (Normal Mode)
  6 m/s (Sport Mode)

• Max Flight Speed (at sea level, no wind)

• 15 m/s (Normal Mode)
  Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) ^[2]

• Max Wind Speed Resistance

• 12 m/s ^[3]

• Max Take-off Altitude Above Sea Level

• 6000 m (without payload)

• Max Flight Time (no wind)

• 45 minutes ^[4] (with DJI Mavic 3 Series Intelligent Flight Battery and DJI Mavic 3 Enterprise Series Propellers)
  36 minutes (with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)

  ^{Note: A Mavic 3 Enterprise Series drone with a C2 label cannot be considered C1-compliant if used with an EU-C1 version battery.}

• Max Hovering Time (no wind)

• 38 minutes (with DJI Mavic 3 Series Intelligent Flight Battery and DJI Mavic 3 Enterprise Series Propellers)
  30 minutes (with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)

  ^{Note: A Mavic 3 Enterprise Series drone with a C2 label cannot be considered C1-compliant if used with an EU-C1 version battery.}

• Max Flight Distance

• 32 km (with DJI Mavic 3 Series Intelligent Flight Battery and DJI Mavic 3 Enterprise Series Propellers)
  24 km (with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)

  ^{Note: A Mavic 3 Enterprise Series drone with a C2 label cannot be considered C1-compliant if used with an EU-C1 version battery.}

• Max Pitch Angle

• 30° (Normal Mode)
  35° (Sport Mode)

• Max Angular Velocity

• 200°/s

• GNSS

• GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)

• Hovering Accuracy

• Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
  Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)

• Operating Temperature Range

• -10° to 40° C (14° to 104° F)

• Internal Storage

• N/A

• Motor Model

• 2008

• Propeller Model

• 9453F Propellers for Enterprise

• Beacon

• Built into the aircraft

• Class

• C2 (EU)

Wide Camera

• Sensor

• DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP
  DJI Mavic 3T/3TA: 1/2-inch CMOS, Effective pixels: 48 MP

• Lens

• DJI Mavic 3E:
  FOV: 84°
  Equivalent Focal Length: 24mm
  Aperture: f/2.8-f/11
  Focus: 1 m to ∞

  DJI Mavic 3T/3TA:
  FOV: 84°
  Equivalent Focal Length: 24mm
  Aperture: f/2.8
  Focus: 1 m to ∞

• ISO Range

• DJI Mavic 3E: 100-6400
  DJI Mavic 3T/3TA: 100-25600

• Shutter Speed

• DJI Mavic 3E:
  Electronic Shutter: 8-1/8000 s
  Mechanical Shutter: 8-1/2000 s

  DJI Mavic 3T/3TA:
  Electronic Shutter: 8-1/8000 s

• Max Image Size

• DJI Mavic 3E: 5280×3956
  DJI Mavic 3T/3TA: 8000×6000

• Still Photography Modes

• DJI Mavic 3E:
  Single: 20 MP
  Timed: 20 MP
  JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  JPEG+RAW: 3/5/7/10/15/20/30/60 s
  Smart Low-light Shooting: 20 MP
  Panorama: 20 MP (raw image)

  DJI Mavic 3T/3TA:
  Single: 12 MP/48 MP
  Timed: 12 MP/48 MP
  JPEG: 2/3/5/7/10/15/20/30/60 s*
  Panorama: 12 MP (raw image); 100 MP (stitched image)

  * Shooting 48MP photo does not support 2s interval
  Smart Low-light Shooting: 12 MP

• Video Resolution

• H.264
  4K: 3840×2160@30fps
  FHD: 1920×1080@30fps

• Bitrate

• DJI Mavic 3E:
  4K: 130 Mbps
  FHD: 70 Mbps

  DJI Mavic 3T/3TA:
  4K: 85 Mbps
  FHD: 30 Mbps

• Supported File Formats

• exFAT

• Photo Format

• DJI Mavic 3E: JPEG/DNG (RAW)
  DJI Mavic 3T/3TA: JPEG

• Video Format

• MP4 (MPEG-4 AVC/H.264)

Tele Camera

• Sensor

• 1/2-inch CMOS, Effective pixels: 12 MP

• Lens

• FOV: 15°
  Equivalent Focal Length: 162mm
  Aperture: f/4.4
  Focus: 3 m to ∞

• ISO Range

• DJI Mavic 3E: 100-6400
  DJI Mavic 3T/3TA: 100-25600

• Shutter Speed

• Electronic Shutter: 8-1/8000 s

• Max Image Size

• 4000×3000

• Photo Format

• JPEG

• Video Format

• MP4 (MPEG-4 AVC/H.264)

• Still Photography Modes

• DJI Mavic 3E:
  Single: 12 MP
  Timed: 12 MP
  JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Low-light Shooting: 12 MP

  DJI Mavic 3T/3TA:
  Single: 12 MP
  Timed: 12 MP
  JPEG: 2/3/5/7/10/15/20/30/60 s
  Smart Low-light Shooting: 12 MP

• Video Resolution

• H.264
  4K: 3840×2160@30fps
  FHD: 1920×1080@30fps

• Bitrate

• DJI Mavic 3E:
  4K: 130 Mbps
  FHD: 70 Mbps

  DJI Mavic 3T/3TA:
  4K: 85 Mbps
  FHD: 30 Mbps

• Digital Zoom

• 8x (56x hybrid zoom)

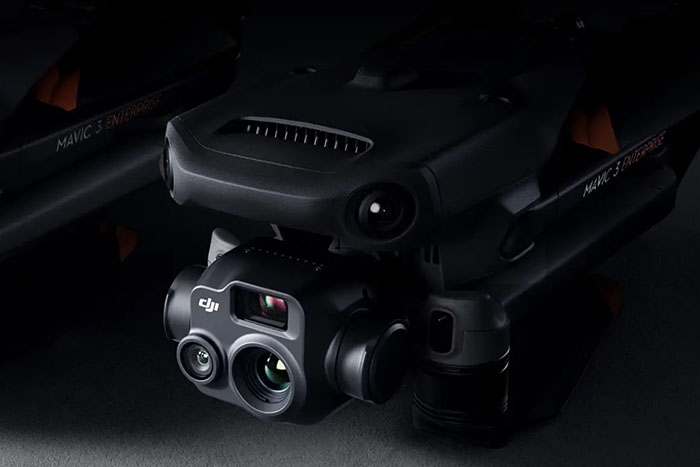

Thermal Camera ^[5]

• Thermal Imager

• Uncooled VOx Microbolometer

• Pixel Pitch

• DJI Mavic 3T: 12 μm
  DJI Mavic 3TA: 8 μm

• Frame Rate

• 30 Hz

• Lens

• DJI Mavic 3T:
  DFOV: 61°
  Equivalent Focal Length: 40mm
  Aperture: f/1.0
  Focus: 5 m to ∞

  DJI Mavic 3TA:
  DFOV: 41.2°
  Equivalent Focal Length: 60mm
  Aperture: f/1.0
  Focus: 5 m to ∞

• Noise Equivalent Temperature Difference (NETD)

• ≤50 mK@F1.0

• Temperature Measurement Method

• Spot Meter, Area Measurement

• Temperature Measurement Range

• -20° to 150° C (-4° to 302° F, High Gain Mode)
  0° to 500° C (32° to 932° F, Low Gain Mode)

• Palette

• White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

• Photo Format

• JPEG (8-bit)
  R-JPEG (16-bit)

• Video Resolution

• 640×512@30fps

• Bitrate

• 6 Mbps

• Video Format

• MP4 (MPEG-4 AVC/H.264)

• Still Photography Modes

• DJI Mavic 3T/3TA:
  Single: 640×512
  Timed: 640×512
  JPEG: 2/3/5/7/10/15/20/30/60 s

• Digital Zoom

• 28x

• Infrared Wavelength

• 8-14 μm

• Infrared Temperature Measurement Accuracy

• High Gain: ±2°C or ±2% (using the larger value)
  Low Gain: ±5°C or ±3% (using the larger value)

Gimbal

• Stabilization

• 3-axis (tilt, roll, pan)

• Mechanical Range

• DJI Mavic 3E:
  Tilt: -135° to 100°
  Roll: -45° to 45°
  Pan: -27° to 27°

  DJI Mavic 3T/3TA:
  Tilt: -135° to 45°
  Roll: -45° to 45°
  Pan: -27° to 27°

• Controllable Range

• Tilt: -90° to 35°
  Pan: Not controllable

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.007°

Sensing

• Type

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.

• Forward

• Measurement Range: 0.5-20 m
  Detection Range: 0.5-200 m
  Effective Sensing Speed: Flight Speed ≤15 m/s
  FOV: Horizontal 90°, Vertical 103°

• Backward

• Measurement Range: 0.5-16 m
  Effective Sensing Speed: Flight Speed ≤12 m/s
  FOV: Horizontal 90°, Vertical 103°

• Lateral

• Measurement Range: 0.5-25 m
  Effective Sensing Speed: Flight Speed ≤15 m/s
  FOV: Horizontal 90°, Vertical 85°

• Upward

• Measurement Range: 0.2-10 m
  Effective Sensing Speed: Flight Speed ≤6 m/s
  FOV: Front and Back 100°, Left and Right 90°

• Downward

• Measurement Range: 0.3-18 m
  Effective Sensing Speed: Flight Speed ≤6 m/s
  FOV: Front and Back 130°, Left and Right 160°

• Operating Environment

• Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
  Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

Video Transmission

• Video Transmission System

• DJI O3 Enterprise Transmission

• Live View Quality

• Remote Controller: 1080p/30fps

• Operating Frequency ^[6]

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Max Transmission Distance (unobstructed, free of interference) ^[7]

• DJI Mavic 3E/3T/3TA:
  FCC: 15 km
  CE: 8 km
  SRRC: 8 km
  MIC: 8 km

• Max Transmission Distance (Obstructed) ^[8]

• Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
  Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
  Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

• Max Download Speed ^[9]

• 15 MB/s (with DJI RC Pro Enterprise)

• Latency (depending on environmental conditions and mobile device)

• Approx. 200 ms

• Antenna

• 4 Antennas, 2T4R

• Transmission Power (EIRP)

• 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)

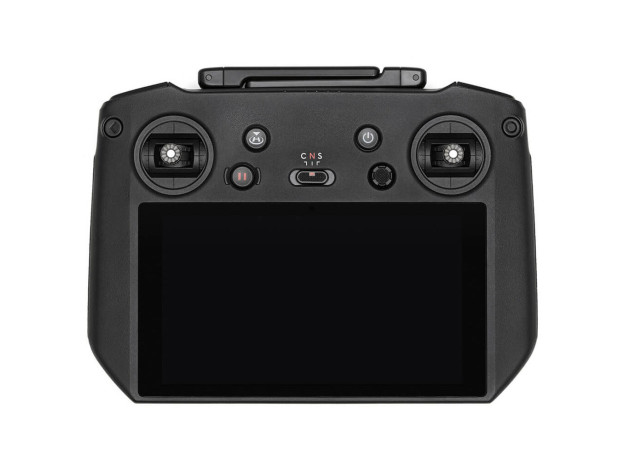

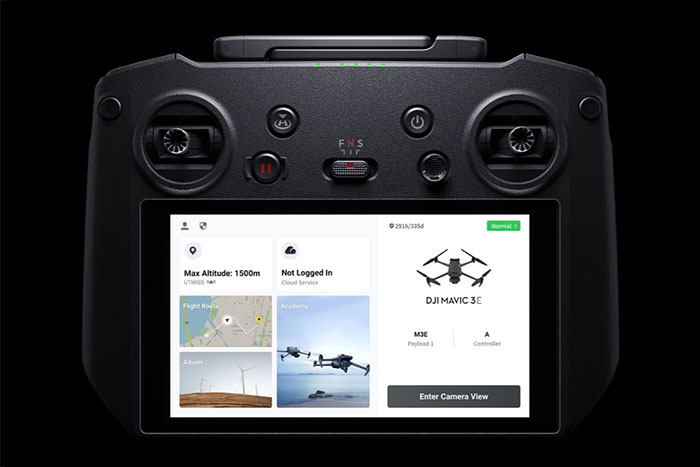

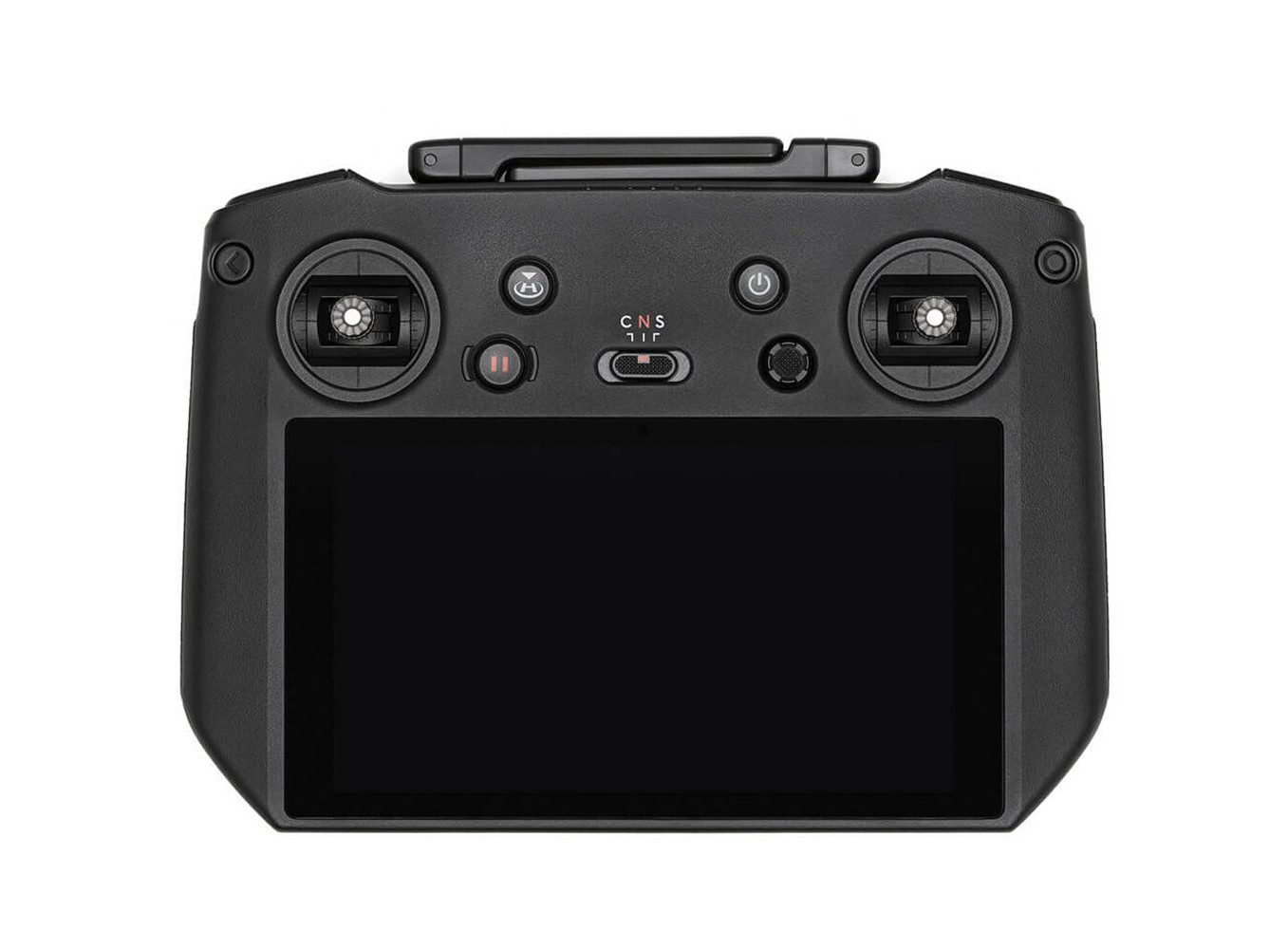

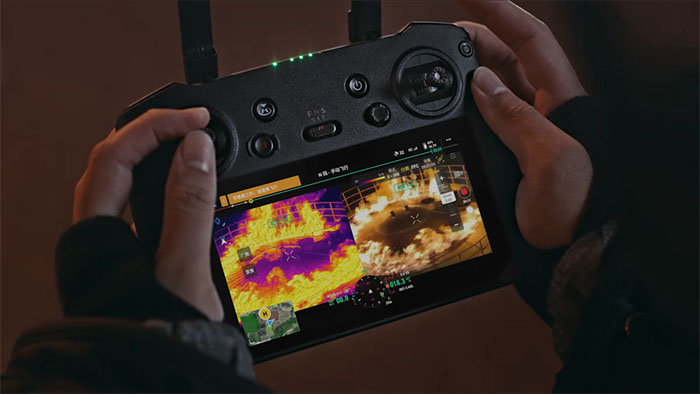

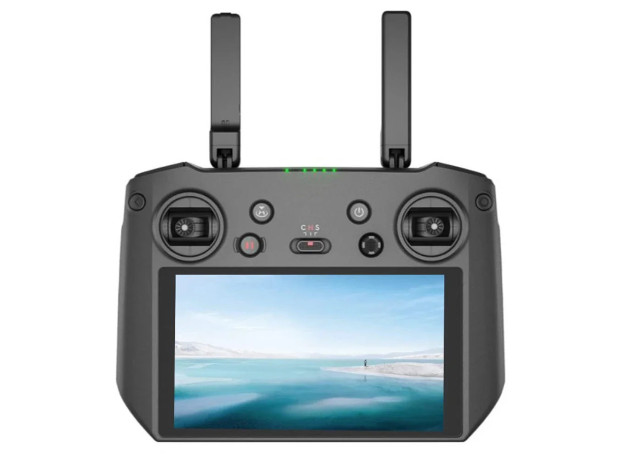

DJI RC Pro Enterprise

• Video Transmission System

• DJI O3 Enterprise Transmission

• Max Transmission Distance (unobstructed, free of interference) ^[7]

• FCC: 15 km
  CE/SRRC/MIC: 8 km

• Video Transmission Operating Frequency ^[6]

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Antenna

• 4 Antennas, 2T4R

• Video Transmission Transmitter Power (EIRP)

• 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)

• Wi-Fi Protocol

• 802.11 a/b/g/n/ac/ax
  Support 2×2 MIMO Wi-Fi

• Wi-Fi Operating Frequency ^[6]

• 2.400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• Wi-Fi Transmitter Power (EIRP)

• 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
  5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Transmitter Power (EIRP)

• < 10 dBm

• Screen Resolution

• 1920×1080

• Screen Size

• 5.5 inches

• Screen

• 60 fps

• Brightness

• 1,000 nits

• Touchscreen Control

• 10-point multi-touch

• Battery

• Li-ion (5000 mAh @ 7.2 V)

• Charging Type

• Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V

• Rated Power

• 12 W

• Storage Capacity

• Internal Storage (ROM): 64 GB
  Supports a microSD card for expanded capacity.

• Charging Time

• Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)
  Approx. 2 hours (with a USB charger at 12 V)
  Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)

• Operating Time

• Approx. 3 hours

• Video Output Port

• Mini-HDMI port

• Operating Temperature Range

• -10° to 40° C (14° to 104° F)

• Storage Temperature

• -30° to 60° C (-22° to 140° F) (within one month)
  -30° to 45° C (-22° to 113° F) (one to three months)
  -30° to 35° C (-22° to 95° F) (three to six months)
  -30° to 25° C (-22° to 77° F) (more than six months)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Supported DJI Aircraft ^[10]

• DJI Mavic 3E/3T/3TA

• GNSS

• GPS+Galileo+GLONASS

• Dimensions

• Antennas folded and controller sticks unmounted:
  183.27×137.41×47.6 mm (L×W×H)
  Antennas unfolded and controller sticks mounted:
  183.27×203.35×59.84 mm (L×W×H)

• Weight

• Approx. 680 g

• Model

• RM510B

Storage

• Supported Memory Cards

• Aircraft:
  U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.

• Recommended microSD Cards

• Remote Controller:
  SanDisk Extreme PRO 64GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  SanDisk Extreme 512GB V30 A2 microSDXC
  Lexar 667x 64GB V30 A2 microSDXC
  Lexar High-Endurance 64GB V30 microSDXC
  Lexar High-Endurance 128GB V30 microSDXC
  Lexar 667x 256GB V30 A2 microSDXC
  Lexar 512GB V30 A2 microSDXC
  Samsung EVO Plus 64GB V30 microSDXC
  Samsung EVO Plus 128GB V30 microSDXC
  Samsung EVO Plus 256GB V30 microSDXC
  Samsung EVO Plus 512GB V30 microSDXC
  Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
  Kingston Canvas React Plus 128GB V90 A1 microSDXC

  Aircraft:
  SanDisk Extreme 32GB V30 A1 microSDHC
  SanDisk Extreme PRO 32GB V30 A1 microSDHC
  SanDisk Extreme 512GB V30 A2 microSDXC
  Lexar 1066x 64GB V30 A2 microSDXC
  Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
  Kingston Canvas React Plus 64GB V90 A1 microSDXC
  Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
  Kingston Canvas React Plus 128GB V90 A1 microSDXC
  Kingston Canvas React Plus 256GB V90 A2 microSDXC
  Samsung PRO Plus 256GB V30 A2 microSDXC

Battery

• Capacity

• DJI Mavic 3 Series Intelligent Flight Battery: 5000 mAh
  DJI Mavic 3 Enterprise Series Battery (EU C1 Version): 4230 mAh

• Standard Voltage

• 15.4 V

• Max Charging Voltage

• 17.6 V

• Type

• LiPo 4S

• Chemical System

• LiCoO2

• Energy

• DJI Mavic 3 Series Intelligent Flight Battery: 77 Wh
  DJI Mavic 3 Enterprise Series Battery (EU C1 Version): 65.15 Wh

• Weight

• DJI Mavic 3 Series Intelligent Flight Battery: 335.5 g
  DJI Mavic 3 Enterprise Series Battery (EU C1 Version): 285 g

• Charging Temperature

• 5° to 40° C (41° to 104° F)

Charger

• Input

• 100-240 V (AC Power), 50-60 Hz, 2.5 A

• Output Power

• 100 W

• Output

• Max. 100 W (total)
  When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.

Charging Hub

• Input

• USB-C: 5-20 V, 5.0 A

• Output

• Battery Port: 12-17.6 V, 8.0 A

• Rated Power

• 100 W

• Charging Type

• Three batteries charged in sequence

• Charging Temperature Range

• 5° to 40° C (41° to 104° F)

RTK Module

• Dimensions

• 50.2×40.2×66.2 mm (L×W×H)

• Weight

• 24±2 g

• Interface

• USB-C

• Power

• Approx. 1.2 W

• RTK Positioning Accuracy

• RTK Fix:
  Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

Speaker

• Dimensions

• 114.1×82.0×54.7 mm (L×W×H)

• Weight

• 85±2 g

• Interface

• USB-C

• Rated Power

• 3 W

• Max Volume ^[11]

• 110 dB @ 1 m

• Effective Broadcast Distance ^[11]

• 100 m @ 70 dB

• Bit Rate

• 16 Kbps/32 Kbps

• Operating Temperature Range

• -10° to 40° C (14° to 104° F)

Other

• Notes

• 1. The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. When using the DJI Mavic 3 Enterprise Series Battery (EU C1 Version), the bare weight of the Mavic 3E (with battery, low-noise propellers, and microSD card) is 865 grams, and the Mavic 3T/3TA (with battery, low-noise propellers, and microSD card) is 870 grams. Always verify and comply with local regulations before flight.
  2. When using the DJI Mavic 3 Enterprise Series Battery (EU C1 Version), the drone will disable the Attitude Mode to ensure flight speed remains below 19 m/s in windless conditions.
  3. Max wind speed resistance during takeoff and landing.
  4. Measured by Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to the RTH reminder on the DJI Fly app during flight.
  5. DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
  6. In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.
  7. Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
  8. Data tested under different standards in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee as to the actual flight distance.
  9. Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the built-in SSD or the internal storage. Download speeds may vary depending on actual conditions.
  10. Will support more DJI aircraft in the future. Visit the official website for the latest information.
  11. The data is measured in an experimental environment and is for reference only. The actual situation will be slightly different due to different software versions, sound sources, specific environments, and other conditions. The final result is subject to actual use.

• Guaranteed software updates until

• 2024/12/31

Footnotes

• The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
