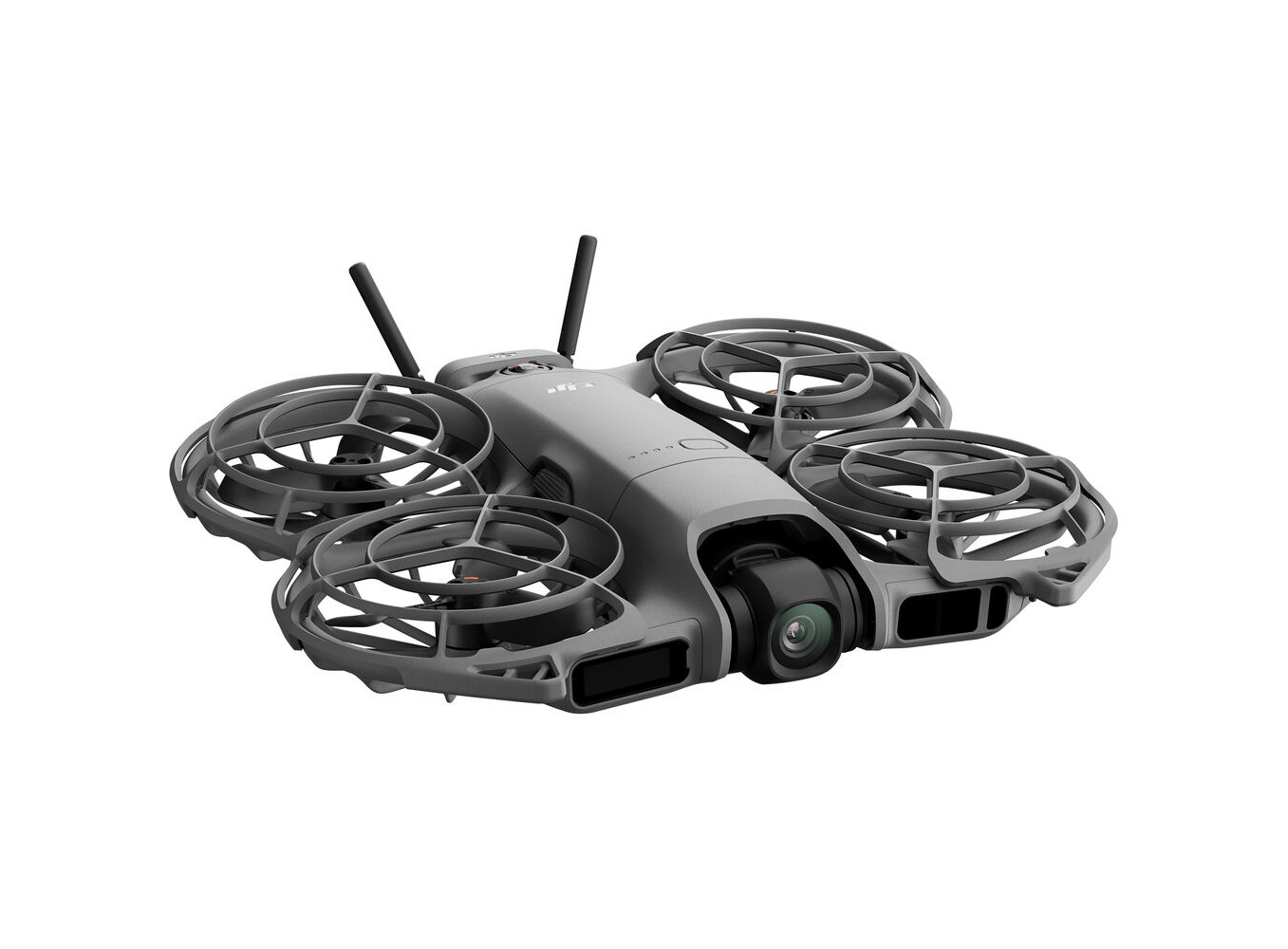

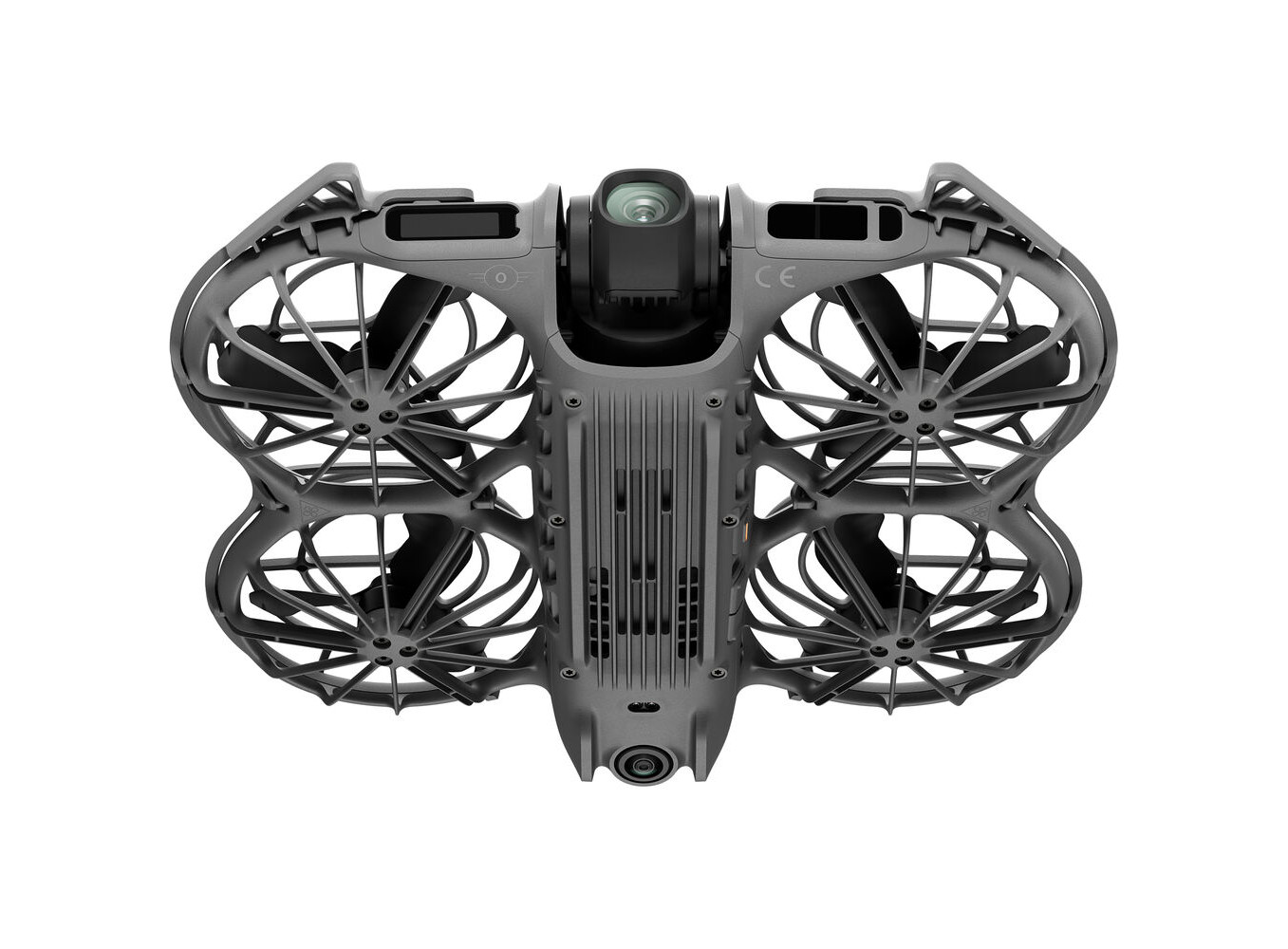

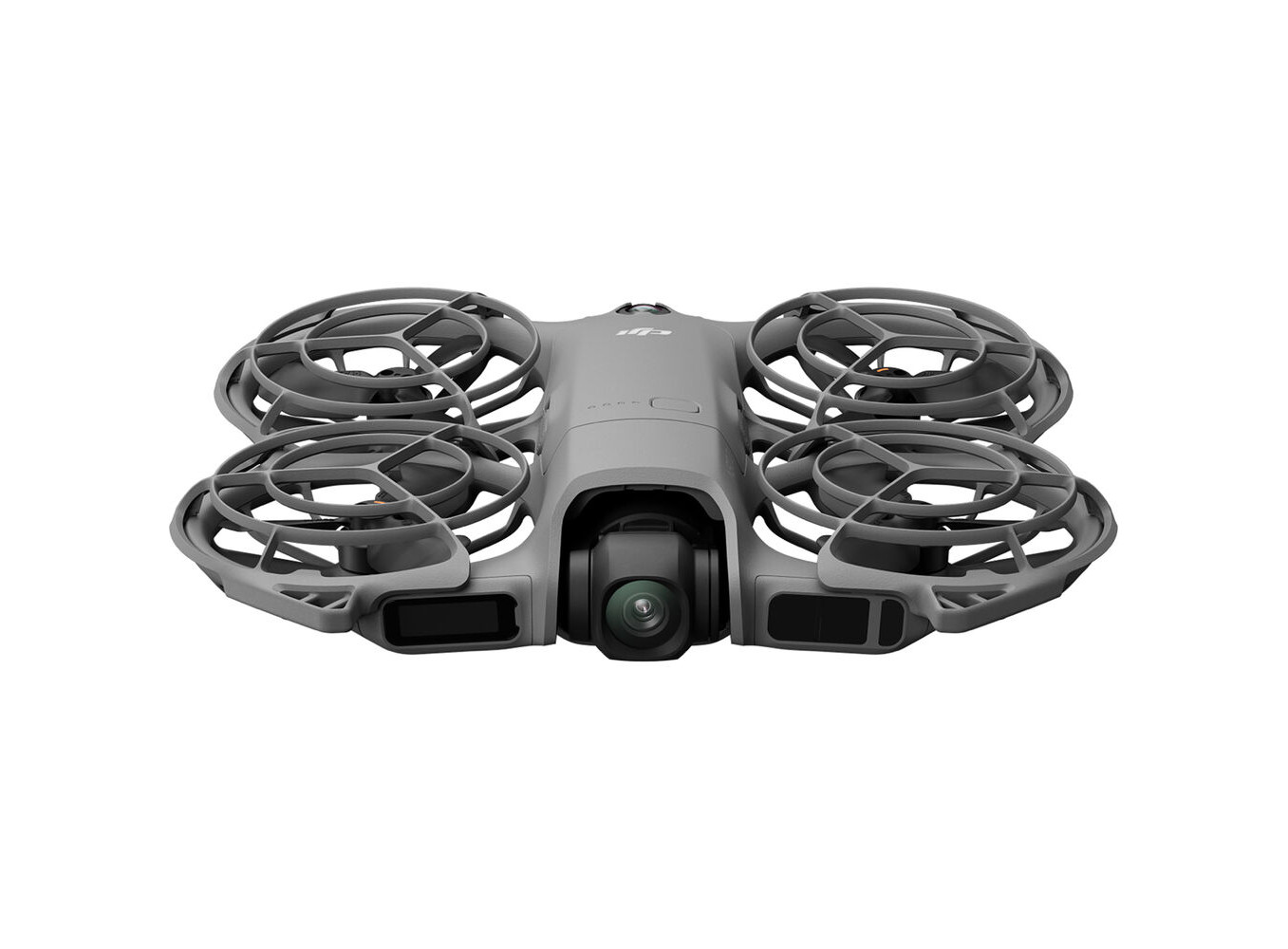

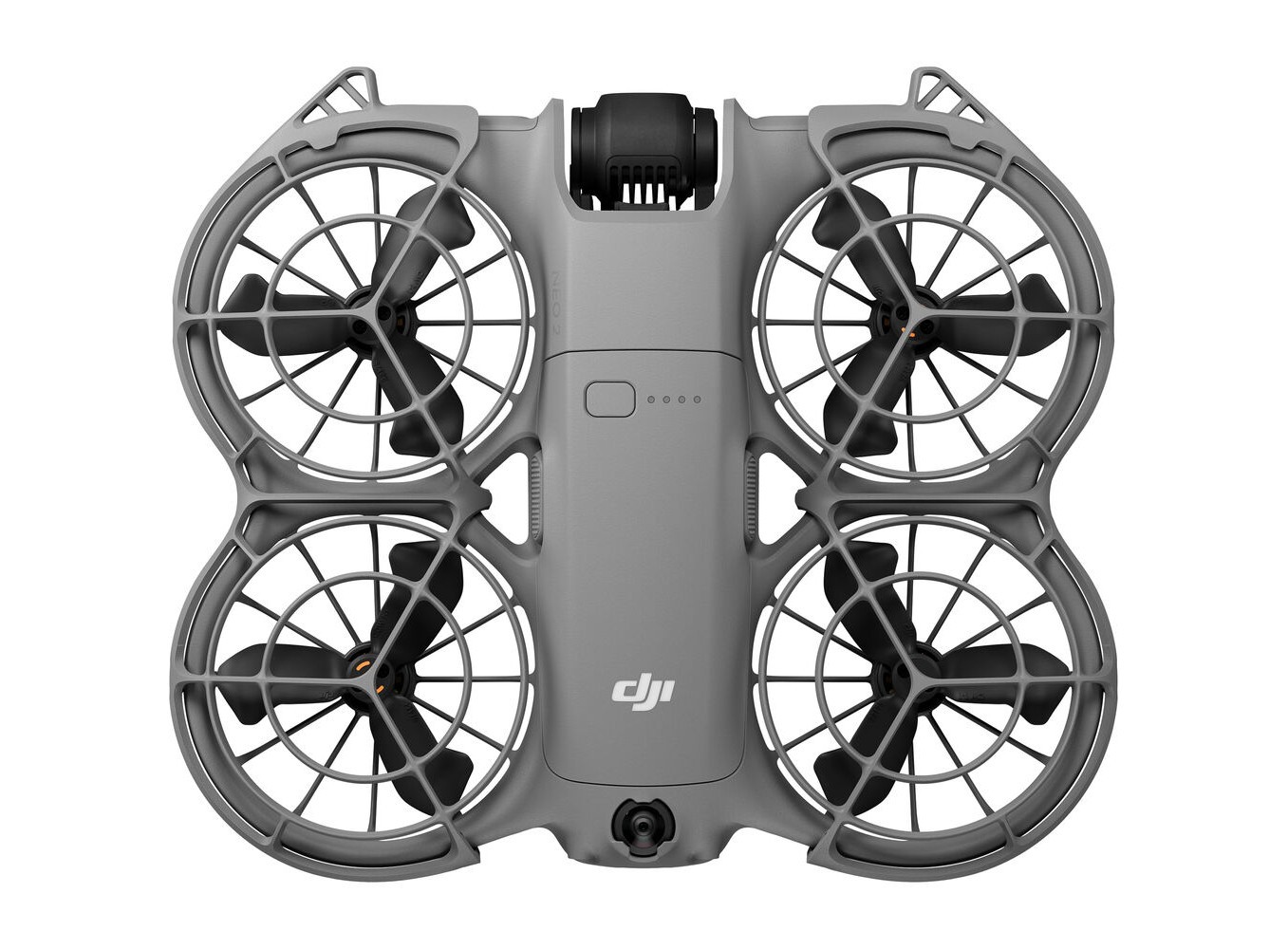

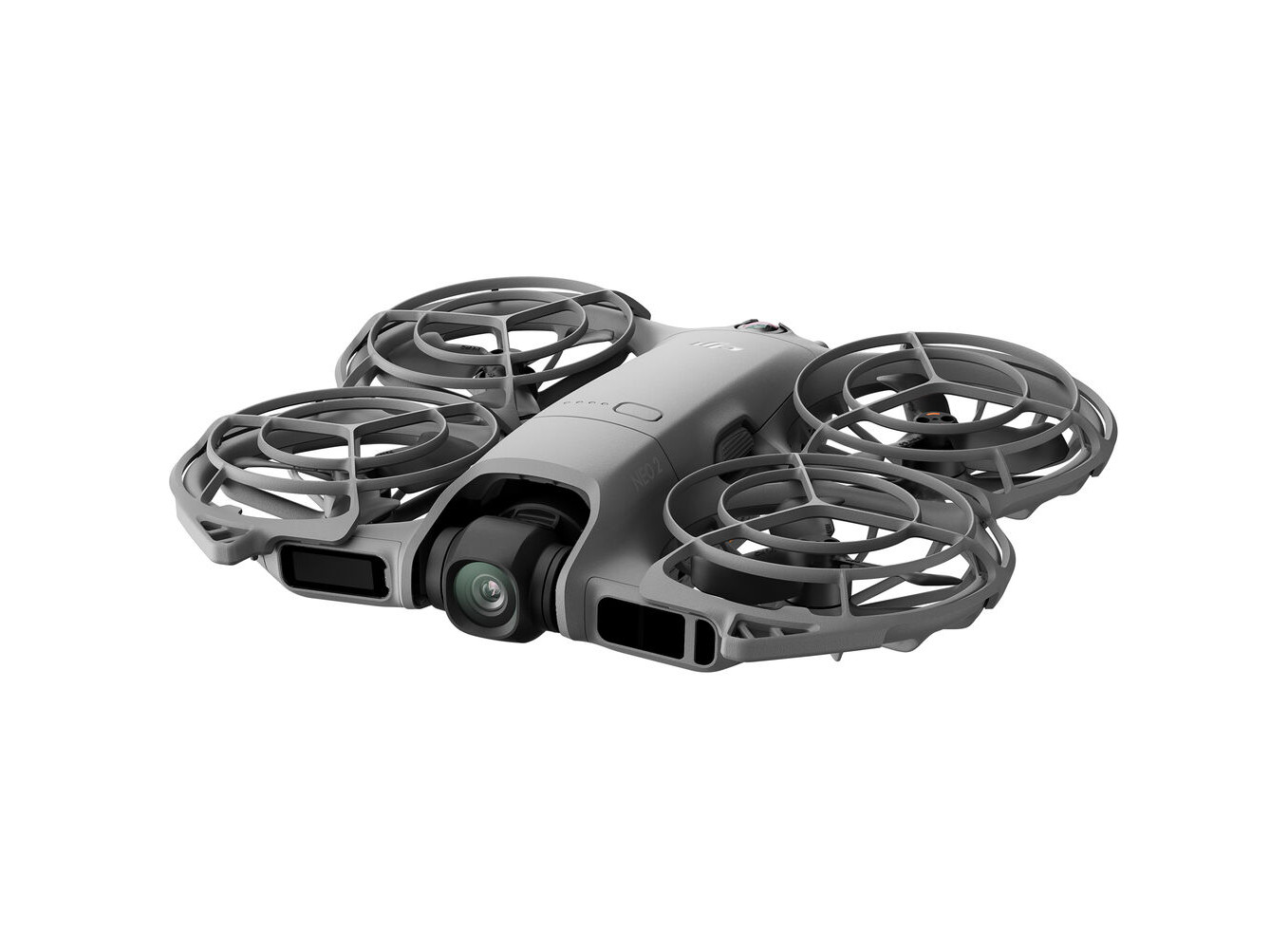

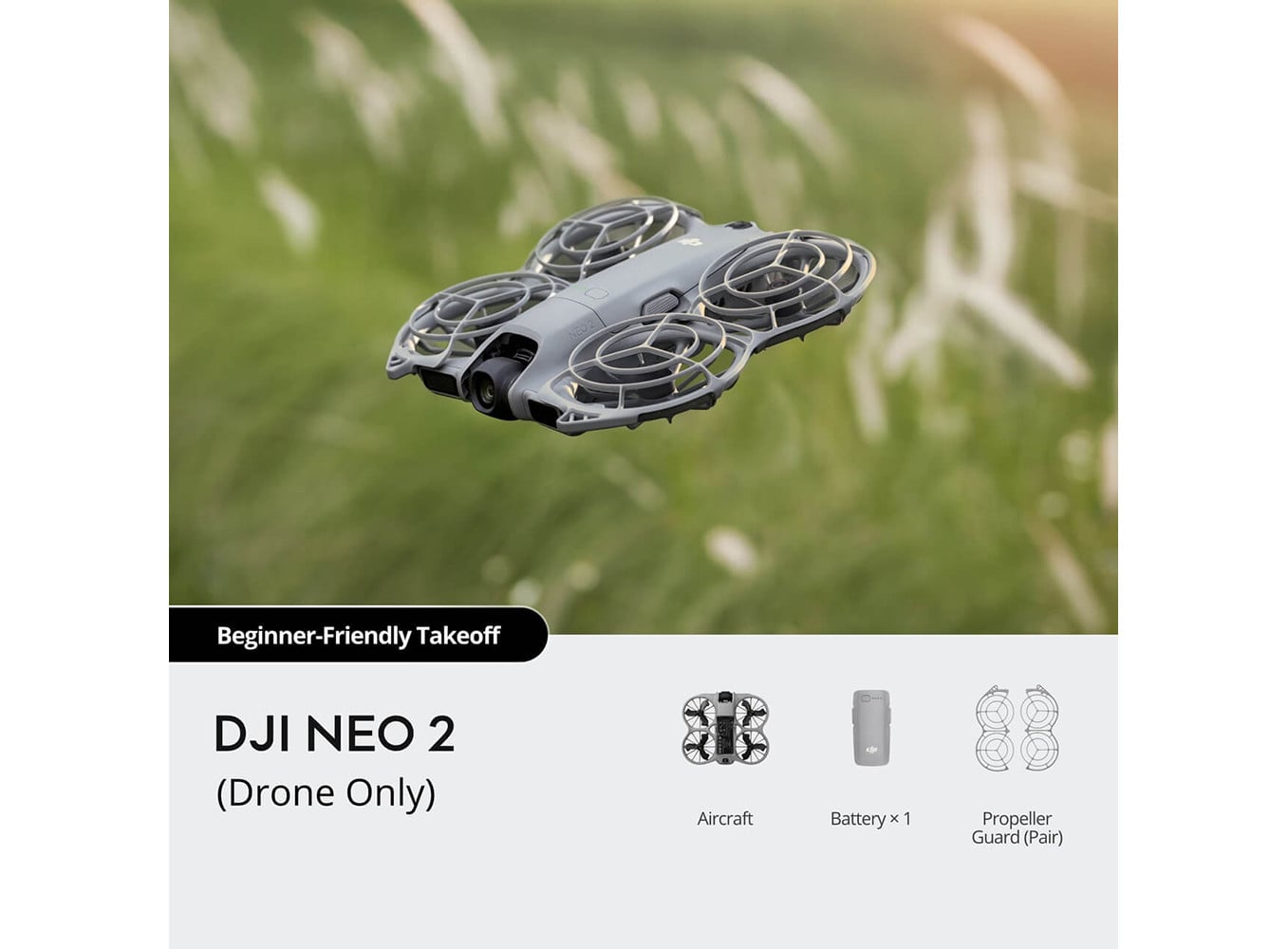

DJI Neo 2 (Chính hãng)

Aircraft

• Takeoff Weight

• 151 g (without DJI Neo 2 Digital Transceiver)
  160 g (with DJI Neo 2 Digital Transceiver)

  ^{The actual product weight may vary due to differences in batch materials and external factors.}

• Dimensions

• 147×171×41 mm (L×W×H, with propeller guards and without DJI Neo 2 Digital Transceiver)
  167×171×54 mm (L×W×H, with propeller guards and DJI Neo 2 Digital Transceiver)

• Max Ascent Speed

• 0.5 m/s (Cine mode)
  3 m/s (Normal mode)
  5 m/s (Sport Mode)

  ^{Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.}

• Max Descent Speed

• 0.5 m/s (Cine Mode)
  3 m/s (Normal Mode)
  3 m/s (Sport Mode)

  ^{Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.}

• Max Horizontal Speed

• 8 m/s (Normal Mode)
  12 m/s (Sport Mode)
  12 m/s (tracking status)

  ^{Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft ascending vertically to a height of 1.5 meters above the ground. Actual experience may vary depending on the environment, usage, and firmware version.}

• Max Takeoff Altitude

• 2000 m

  ^{Measured in a windless environment when taking off from an altitude of 2000 m and ascending vertically by 120 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.}

• Max Flight Time

• Approx. 19 minutes (approx. 17 minutes with the propeller guards)*
  Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession**

  ^{* Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft (without installing DJI Neo 2 Digital Transceiver) flying forward at a constant speed of 4 m/s, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.
  ** Measured after DJI Neo 2 is activated, with a fully charged battery and default settings, and using Circle, Rocket, and Dronie modes, and is for reference only.}

• Max Hovering Time

• Approx. 18 minutes (16.5 minutes with the propeller guards)

  ^{Measured when hovering in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.}

• Max Flight Distance

• 7 km

  ^{Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft (without installing DJI Neo 2 Digital Transceiver) flying forward at a constant speed of 9 m/s, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.}

• Max Wind Speed Resistance

• 10.7 m/s (Level 5)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with satellite positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with satellite positioning)

• Internal Storage

• 49 GB

• Class

• C0 (EU)

Camera

• Image Sensor

• 1/2-inch CMOS Sensor

• Lens

• FOV: 119.8°
  Format Equivalent: 16.5 mm
  Aperture: f/2.2
  Focus: 0.7 m to ∞

• ISO Range

• Photo
  100-3200 (Single Auto)
  100-12800 (Burst Auto/Timed Auto)
  100-12800 (Manual)

  Video
  100-12800 (Auto)
  100-12800 (Manual)

• Shutter Speed

• Video: 1/8000-1/30 s
  Photo: 1/8000-1/10 s

• Max Image Size

• 12 MP Photo
  4000×3000 (4:3)
  4000×2250 (16:9)

• Still Photography Modes

• Single/Timed Shot
  Single Shot: 12 MP
  Timed Shot: 12 MP, 2/3/5/7/10/15/20/30/60 s

• Photo Format

• JPEG

• Video Resolution

• Horizontal Shooting:
  4K (4:3*): 3840×2880@60/50/30fps
  1080p (4:3*): 1440×1080@60/50/30fps
  4K (16:9): 3840×2160@100**/60/50/30fps
  1080p (16:9): 1920×1080@100**/60/50/30fps

  Vertical Shooting:
  2.7K (9:16): 1512×2688@60/50/30fps

  ^{* Recording in 4:3 aspect ratio is only supported when connected to DJI Goggles.
  ** 4K/100fps and 1080p/100fps recording are only supported when using motion control or remote control.}

• Video Format

• MP4

• Max Video Bitrate

• 80 Mbps

• Supported File System

• exFAT

• Color Mode

• Normal

• EIS

• Supports RockSteady and turning stabilization off*.

  ^{* The stabilization switch (On/Off) is only available when paired with goggles. When stabilization is turned off, footage captured supports offline stabilization with Gyroflow.}

Gimbal

• Stabilization

• 2-axis mechanical gimbal (tilt, roll)

• Mechanical Range

• Tilt: -125° to 105°
  Roll: -43° to 43°

• Controllable Range

• Tilt: -90° to 70°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

• Image Roll Correction

• Supports correction of footage recorded on the drone.

  ^{Live view correction is unavailable only when using with goggles.}

Sensing

• Sensing Type

• Omnidirectional monocular vision system, paired with a downward infrared sensing system and forward-facing LiDAR

• Forward

• Measurement Range: 0.5-10 m
  Detection Range: 0.5-15 m
  Effective Sensing Speed: Flight Speed ≤ 8 m/s

• Backward

• Detection Range: 0.5-15 m
  Effective Sensing Speed: Flight Speed ≤ 8 m/s

• Lateral

• Detection Range: 0.5-15 m
  Effective Sensing Speed: Flight Speed ≤ 8 m/s

• Upward

• Detection Range: 0.5-15 m
  Effective Sensing Speed: Flight Speed ≤ 3 m/s

• Downward

• Detection Range: 0.5-15 m
  Effective Sensing Speed: Flight Speed ≤ 3 m/s

• Infrared Sensor

• Forward-Facing LiDAR:
  Measurement Range: 0.3-8 m (reflectivity > 10%)
  FOV: Horizontal 60°, Vertical 60°

  Downward-Facing Infrared Sensor:
  Measurement Range: 0.3-8 m (reflectivity > 10%)

• Operating Environment

• Forward, Backward, Left, Right, and Upward:
  Surfaces with discernible patterns and adequate lighting (lux > 5)

  Downward:
  Surfaces with discernible patterns and adequate lighting (lux > 5), and surfaces that are diffusely reflective with a reflectivity above 20% (e.g., walls, trees, people).

Video Transmission

• Video Transmission System

• Standard: Wi-Fi Video Transmission
  Optional: DJI Neo 2 Digital Transceiver (O4)

• Live View Quality

• With DJI RC-N3 Remote Controller: Up to 1080p/60fps
  With DJI Goggles N3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps
  With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/100fps

• Operating Frequency

• 2.400 GHz to 2.4835 GHz
  5.170 GHz to 5.250 GHz
  5.725 GHz to 5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  < 26 dBm (FCC)
  < 14 dBm (CE)
  < 26 dBm (SRRC)

• Communication Bandwidth

• Max 60 MHz

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 10 km
  CE: 6 km
  SRRC: 6 km
  MIC: 6 km

  ^{Measured in an unobstructed outdoor environment free of interference using the remote controller or goggles and showed the farthest communication range for one-way, non-return flights under each standard. The maximum video transmission distance in the actual flight scenarios is limited by the drone's maximum flight distance. Always pay attention to RTH reminders on the live view during your flight.}

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference: Urban landscape, approx. 1.5-3 km
  Medium Interference: Suburban landscape, approx. 3-6 km
  Low Interference: Suburb/Seaside, approx. 6-10 km

  ^{Measured under FCC standard in unobstructed environments with typical interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
  Low Interference and Obstructed by Trees: Approx. 0.5-3 km

  ^{Measured under FCC standard in obstructed environments with typical low interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed

• Wi-Fi: 80 MB/s

  ^{Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms
  With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms
  With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms

  ^{Latency data refers to the minimum delay during goggles screen refresh, measured in an open, interference‑free environment. Actual performance may vary with shooting conditions and mobile device.}

• Max Video Bitrate

• 60 Mbps

• Antenna

• 2 antennas, 1T2R

Wi-Fi

• Protocol

• 802.11a/b/g/n/ac/ax

• Operating Frequency

• 2.400 GHz to 2.4835 GHz
  5.170 GHz to 5.250 GHz
  5.725 GHz to 5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)

  5.1 GHz:
  ＜23 dBm (CE)

  5.8 GHz:
  < 26 dBm (FCC/SRRC)
  < 14 dBm (CE)

• Effective Operating Range

• 500 m

  ^{Measured in an open, unobstructed environment under FCC standards. Actual video transmission distance may vary depending on the operating environment, mobile device performance, and local regulations. Refer to the actual experience.}

Bluetooth

• Protocol

• Bluetooth 5.2

• Operating Frequency

• 2.400 GHz to 2.4835 GHz

  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• < 10 dBm

Battery

• Capacity

• 1606 mAh

• Weight

• 46 g

• Nominal Voltage

• 7.16 V

• Max Charging Voltage

• 8.6 V

• Battery Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 11.5 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100%
  When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100%

  ^{Charging time is measured in a test environment with a temperature of 25° C (77° F). Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.}

Charger

• Recommended Charger

• DJI 65W Portable Charger
  USB Power Delivery chargers

Battery Charging Hub

• Input

• 5 V, max 5 A
  9 V, max 5 A
  12 V, max 5 A
  15 V, max 4.33 A
  20 V, max 3.25 A

  ^{Max current depends on adapter capability.}

• Output (charging)

• 5 V, 2 A

• Charging Method

• 3 batteries charged simultaneously

  ^{The number of batteries that can be charged simultaneously depends on the power of the charger used. Using a charger rated above 45 W allows you to charge three batteries at the same time. Using a charger rated between 30 W and 45 W allows you to charge only two batteries simultaneously. Using a charger below 30 W will charge the batteries sequentially, from the highest remaining charge to the lowest. Refer to the charging protocols supported by the charger.}

• Compatibility

• DJI Neo 2 Intelligent Flight Battery

Storage

• Recommended microSD Cards

• Does not support storage expansion with an external SD card
